| System | |||||
| Main Processor | 32 Bit | ||||
| Memory | 16M | ||||
| Input/Output Ports | |||||
| Input | Inputs x 8 (door sensor x 2, exit button x 2, alarm x 4) | ||||
| Output | Relay x 4 (door lock x 2, alarm x 4) | ||||
| Reader | Reader x 4 | ||||
| Capacity | |||||
| Card holders/Events | 100,000/150,000 | ||||
| Function | |||||
| Access control | Anti-pass back, Multi-interlock, Multi-card unlock) | ||||
| User Management | General, VIP, Guest, Patrol, Black list, Duress | ||||
| Alarm Function | Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm | ||||
| Period | Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period | ||||
| Interface | |||||
| To PC | RJ45(10/100M) | ||||
| To Reader | Wiegand26/34，RS485 | ||||
| General | |||||
| RTC | Yes | ||||
| Power Supply | 9-15DC/500mA | ||||
| Working Environment | -30°C~+60°C | ||||
| Working Humidity | ≤95% | ||||
| Dimension(W×D×H)t | 210*51*116mm | ||||
| Weight | 0.56Kg | ||||

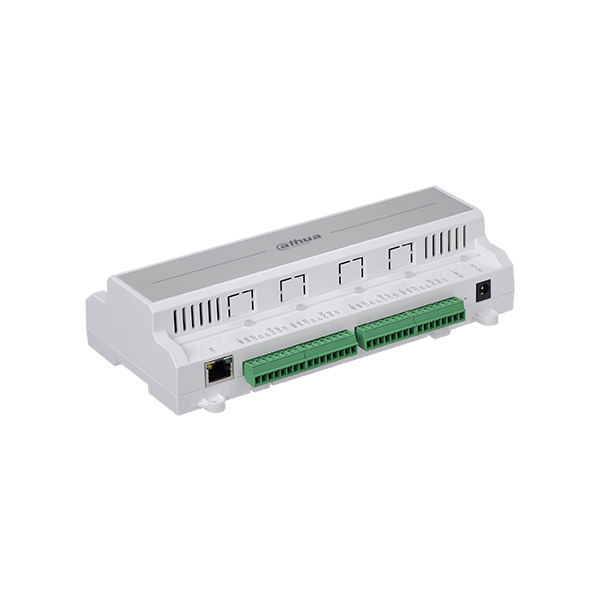

ASC1202B-D
Two Door two way Access Controller
Features:
- Support 100,000 valid cards & 150,000 records
- Support multiple cards
- Support card, password, fingerprint and combination
- TCP/IP interface to PC
- Wiegand or RS-485 interface to readers(2 door)
- Door time out alarm, intrusion alarm, duress alarm and tamper alarm
- Anti-pass back, multi-door interlock, multi-card open
- Support 128 efficient time and holiday schedules
- Watch dog function ensure device free from halting
- Surface mounted installation
