| System | ||||||
| Main Processor | 32 Bit | |||||
| Memory | 16M | |||||
| Input/Output Ports | ||||||
| Input | Door sensor x 1, Exit button x 1, Alarm input x 1 | |||||
| Output | Relay :Door lock x 1
TTL: Bell x 1, Alarm x 1 |
|||||
| Reader | Reader x 1 | |||||
| Card Read | ||||||
| Read Format | 13.56MHz(Mifare)/125KHz(“-D” EM, Optional) | |||||
| Read Range | 3-8cm (max.) | |||||
| Response Time | <0.1s | |||||
| Capacity | ||||||
| Cardholders | 30,000 | |||||
| Events | 150,000 | |||||
| Function | ||||||
| User Management | General, VIP, Guest, Patrol, Black list, Duress | |||||
| Alarm Function | Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm | |||||
| Period Setting | Support 128 groups of schedule, 128 groups of periods and 128 groups of holiday periods | |||||
| Interface | ||||||
| To PC | RJ45(10/100M) | |||||
| To Reader | Wiegand/ RS485 | |||||
| General | ||||||
| RTC | Yes | |||||
| Voice Prompt | No | |||||
| Beep Tone | Buzzer | |||||
| Keyboard | Sensitive touch keypad with blue backlight | |||||
| Power Supply | 9-15DC/200mA | |||||
| Working Environment | -5°C~+55°C | |||||
| Working Humidity | ≤95% | |||||
| Dimension(W×D×H) | 97mm*16mm *150mm | |||||
| Weight | 0.3Kg | |||||

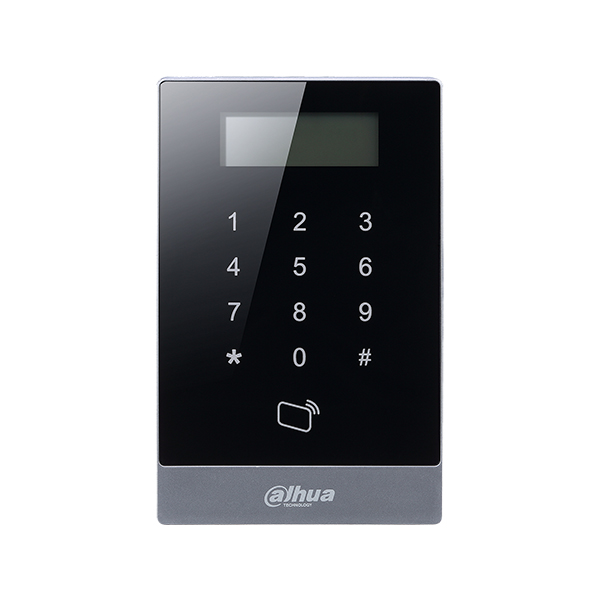

ASI1201A / ASI1201A-D
RFID Standalone
Features:
- Touch keyboard and LCD display
- Support 30,000 valid cards & 150,000 records
- Support multiple cards(default IC card) (“-D” means ID EM card)
- Support card, password and combination
- TCP/IP to PC
- Wiegand or RS-485 interface to reader
- Door time out alarm, intrusion alarm, duress alarm and tamper alarm
- Anti-pass back, multi-card open
- Software attendance
- Support 128 efficient time and holiday schedules
- Watch dog function ensure device free from halting
