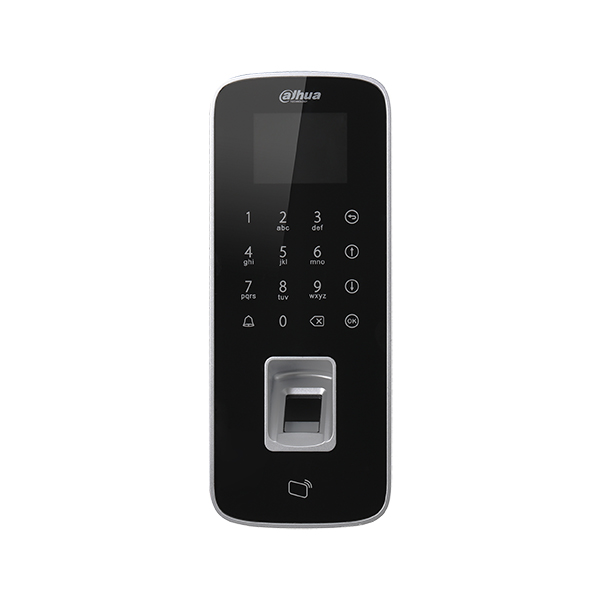

ASI1212D / ASI1212D-D

Categories: , ,

Water-proof Fingerprint Standalone

Features:

  • Touch keyboard and LCD display
  • Support 30,000 valid cards & 150,000 records
  • Support multiple cards(default IC card) (“-D” means ID EM card)
  • Support card, password, fingerprint and combination
  • TCP/IP to PC, support WAN communication
  • Support P2P add device
  • Wiegand or RS-485 interface to reader
  • Door time out alarm, intrusion alarm, duress alarm and tamper alarm
  • Anti-pass back, multi-card open
  • Software attendance
  • Support 128 efficient time and holiday schedules

Add to Enquiry List
Technical Specification
Model ASI1212D ASI1212D-D
System
Main Processor 32 Bit
Flash Memory 32M
Input/Output Ports
Input Door sensor x 1, Exit button x 1, Alarm input x 1
Output Relay：Door lock x 1
TTL: Bell x 1, Alarm x 1
Card Read
Read Format 13.56MHz(Mifare) 125KHz(ID card)
Read Range 3-8cm (max.)
Response Time <0.1s
Fingerprint Read
Response Time ≤0.5s
Recognition Time ≤1.5s
FAR ≤0.00004%
FRR ≤0.15%
Capacity
Card holders 30,000
Events 150,000
Fingerprint 3000
Function
Network P2P, DHCP
Access control Anti-passback, Multi-interlock, Multi-card unlock
User Management General, VIP, Guest, Patrol, Black list, Duress
Alarm Function Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm
Schedule Setting Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period
Interface
To PC RJ45(10/100M)
To Reader Wiegand34/26, RS485
General
RTC Yes
Voice Prompt Yes
Beep Tone Buzzer
Ingress protection IP65
Power Supply 9-15DC/200mA
Working Environment -5°C-+55°C
Working Humidity ≤95%
Dimension(W×D×H) 205mm*33mm *83mm
Weight 0.44Kg
