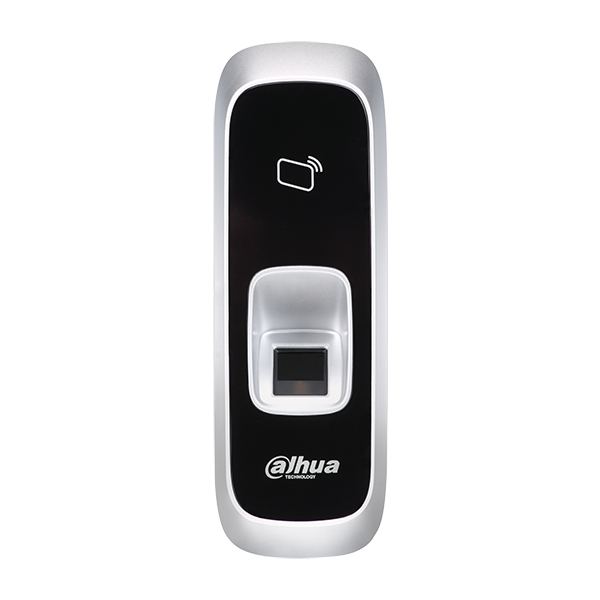

ASR1102A(V2) ASR1102A-D(V2)

Fingerprint RFID Reader

Features:

  • RS-485 protocol
  • Default IC (Mifare) card (“-D” means ID EM card)
  • Support card, fingerprint
  • Up to 3000 fingerprints capacity
  • Blue backlight
  • Watch dog function ensure device free from halting
  • Beep and indicator
  • Surface mounted installation

Technical Specification
Model ASR1102A(V2) ASR1102A-D(V2)
System
Main Processor 8 bit
Read
Read Format 13.56MHz 125KHz
Read Range 6-8cm (max.)
Reading Time <0.1s
Fingerprint
Capacity 3000
Response Time ≤0.5s
Recognition Time ≤1.5s
FAR ≤0.00004%
FRR ≤0.15%
Function
Tamper Alarm Yes
Interface
To Controller RS485
General
LCD Display Blue backlight
Beep Tone Buzzer
Power Supply 9-15VDC/100mA
Working Environment -5°C-+55°C
Working Humidity 5%~95%
Dimension (W×D×H) 165mm*57mm*29mm
Weight 0.25kg
