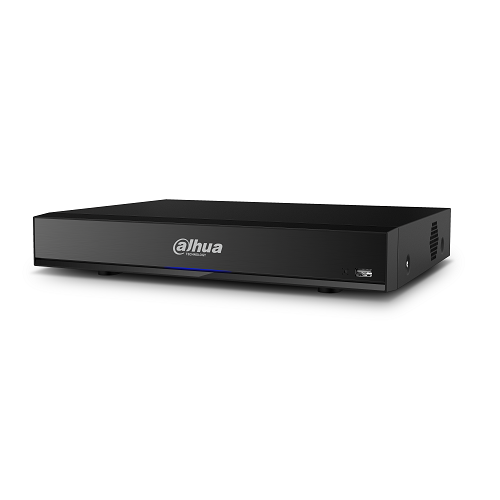

Dahua 4K Pro Series DVR-XVR7108HE-4KL-I

SKU: XVR7108HE-4KL-I Categories: , , Tag:

8 Channel Penta-brid 4K Mini 1U Digital Video Recorder

Features:

  • H.265+/H.265 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Supports 16/32 channels of IPC access, each channel up to 8MP input; Max 64/128Mbps Incoming Bandwidth
  • IoT & POS functionalities
  • Perimeter Protection and SMD Plus
  • Up to 2 channels video stream(analog channel )human face recognition



Add to Enquiry List

Dahua 4K Pro Series DVR-XVR7108HE-4KL-I

8 Channel Penta-brid 4K Mini 1U Digital Video Recorder

System
Main Processor Embedded Processor
Operating System Embedded LINUX
Perimeter Protection
Perimeter protection 1.AI by DVR: Detection alarm for human and vehicle. Filter misinformation such as leaves and light.
2.Function configuration: Set at most 10 rules such as area intrusion and tripwire intrusion.
3.Performance: 2 channels
Live View 1. Rule box inspection: Configure the rule box and object inspection box.

2.Smart panel: Display object classification (human, vehicle), event types, triggering time, image matting and object types. Attribute is not supported.

3. Counting: Count people in Peopletotal. Count motor vehicles in Vehicle. Support exporting of associated event playback before and after 10 seconds.
Playback 1. Search conditions: According to channels, time, event types and target types.

2.Functions: Support search of associated event playback or snapshot before and after 10 seconds.

3. Snapshot capacity: 500,000

Face Recognition
Performance 1. UP to 12 face pictures/sec processing (modeling and comparing).

2. Up to 2 channels video stream (analog channel ) human face recognition.

3. Up to 10 face databases with 10,000 face images in total.

4. Up to 300,000 face detection events in total.

5. Up to 300,000 face Recognition events in total.
Stranger Mode Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually.
AI Search Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
Database Application Each database can be applied to video channels independently .
Trigger Events Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

SMD Plus
SMD Plus 1. AI by DVR: Motion detection alarm for human and vehicle. Filter misinformation such as leaves and light.

2. Performance: 8 channels , AI by DVR
Preview Preview: Configure and inspect detection box
Playback 1.Playback: Search videos through channels, time and target types.
2.Functions: Support search of associated event playback before and after 10 seconds.

Video and Audio
Analog Camera Input 8 Channel, BNC
HDCVI Camera Input 4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera Input 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera Input 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
CVBS Camera Input PAL/NTSC
IP Camera Input 8+8 Channel, each channel up to 8MP
Audio In/Out 8 Channel Input, 1 Channel Output, RCA
Two-way Talk Reuse audio in/out, RCA

Recording
Compression H.265+/H.265/H.264+/H.264
Resolution 4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF, QCIF
Record Rate Main stream: All channel 4K(1fps–7fps); 6MP(1fps–10fps); 5MP(1fps–12fps); 4MP/3MP(1fps–15fps); 4M-N/1080P/720P/960H/D1/CIF/QCIF (1fps–25/30fps);

Sub steram:960H(1fps–15fps);

D1/CIF/QCIF(1fps–25/30fps)
Bit Rate 32 Kbps–6144 Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate 8 KHz, 16 bit Per Channel
Audio Bit Rate 64 Kbps Per Channel

Display
Interface 1 HDMI, 1 VGA
Resolution HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720
Multi-screen Display When IP extension mode not enabled:

8CH: 1/4/8/9

When IP extension mode enabled:

8CH: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network
Interface 1 RJ-45 Port (1000M)
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input 8/16
Relay Output 3
Playback and Backup
Playback 8CH: 1/4/9
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network

Storage
Internal HDD 1 SATA Port, up to 10TB capacity for each disk
eSATA N/A
Auxiliary Interface
USB 2 USB Ports (1 USB 2.0 , 1 USB 3.0)
RS485 1 Port, for PTZ Control
RS232 N/A
Electrical
Power Supply 8CH: DC 12V/2A
Power Consumption

(Without HDD)

 8CH: <10W (Without HDD)

Construction
Dimensions Mini 1U, 325mm×255mm×55mm (12.8″ x 10″ x 2.2″)
Net Weight

(without HDD)

 1.45kg (3.2lb) (without HDD)
Gross Weight 2kg (4.4lb)
Installation Desktop installation

Environmental
Operating Conditions -10°C to +55°C (+14°F to +131°F), 0–90% RH
Storage Conditions -20°C to +70°C (-4°F to +158°F), 0–90% RH
Third-party Support
Third-party Support Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications
Certifications FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
