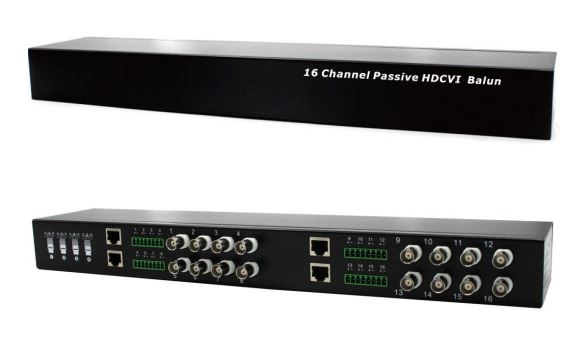

Dahua HD-CVI Video Transmission PFM809-4MP

Features:

Power supply: No need additional power supply.
Transmission effect: Real-time transmission HDCVI/AHD/TVI/CVBS video signal without compression, video is clear and stable.
Transmission distance: 0~400m (with passive transmitter).
Main functions: Use 4 wires meanwhile to transmit 16-ch video signal.
Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
Appearance structure: BNC coaxial interface, the green has screw terminal and crystal head twisted-pair cable interface.

Model	PFM809-4MP
Properties
Transmission Signal	16 channel
Transmission Distance	HDCVI: 720P: max.400m(1312.34ft); 1080P: max. 250m(820.21ft); 4MP: max. 200m(656.17ft)
Category Type	UTP CAT5E/6
Video Transmission Properties And Port
Coaxial Video Connector	BNC
Connection Way	Spring loaded
Compatible Format	HDCVI/AHD/TVI/CVBS
Resolution	720P/1080P/4MP
Anti-interference	＞60db
Protection
ESD	1a contact discharge electricity level 3
	1b air discharge electricity level 3
	Per: IEC61000-4-2
Coaxial Cable Connector	2KV(common-code)
Coaxial Cable Connector	Per: IEC61000-4-5
UTP Cable Connector	2KV(different-code), 4KV(common-code)
UTP Cable Connector	Per: IEC61000-4-5
Impedance
BNC Male	75 ohms
UTP Cable	100 ohms
Physical Properties
Dimension(LWH)	430mm100mm44.5mm(1U) (16.93”x3.94”x1.75”)
Shell	SECC
Color	Black
N.W.	1.25kg (2.76lb)
Stability
MTBF	>10000H
Environmental
Operating Temperature	-10℃ ~ +55℃ (14℉ ~ 131℉)
Storage Temperature	-20℃ ~ +70℃ (-4℉ ~ 158℉)
Humidity	0 ~ 95% (non-condensing)
Certification
Certification	CE, FCC
