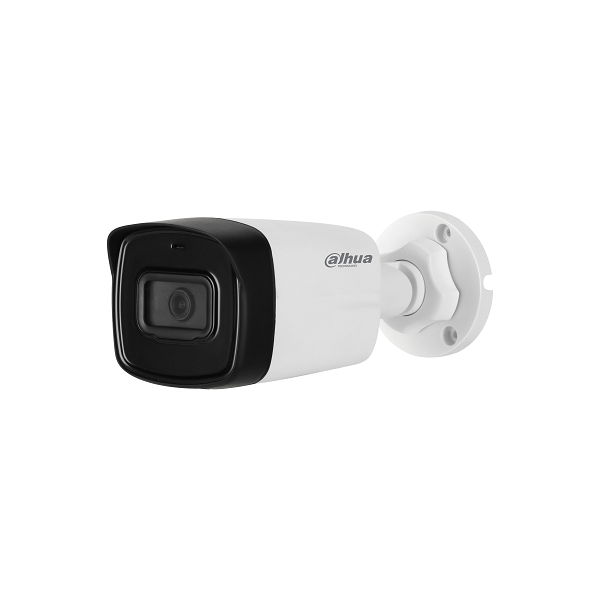

Dahua Lite Plus Series 5MP HD-CVI Cameras HAC-HFW1500TL-A
5MP Starlight HDCVI IR Bullet Camera
Features:
* The parameters and datasheets below can only be applied to 1500-S2 series.
- Max 25fps@5MP (16:9 video output)
- CVI/CVBS/AHD/TVI switchable
- 3.6 mm fixed lens (2.8 mm, 6 mm, 8 mm optional)
- Built-in mic
- Max. IR length 80m, Smart IR
- IP67, DC12V
Camera |
|
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 2880 (H) × 1620 (V), 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s |
| Minimum Illumination | 0.005 Lux/F1.6, 30IRE, 0 Lux IR on |
| S/N Ratio | More than 65dB |
| Illumination Distance | 80 m (262.5 ft) |
| Illumination On/Off Control | Auto ; Manual |
| Illuminator Number | 2 |
Lens |
|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm; 8 mm |
| Max Aperture | F1.6 |
| Angle of View | 2.8 mm: 132° × 111° × 58°
(diagonal × horizontal × vertical) 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical) 6 mm: 65° × 57° × 30° (diagonal × horizontal × vertical) 8 mm: 48° × 43° × 24° (diagonal × horizontal × vertical) |
| Iris Type | Fixed iris |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.2 ft) 6 mm: 3.1 m (10.2 ft) 8 mm: 4.9 m (16.1 ft) |
| DORI Distance | |
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |
| DORI Distance | |
| Detect | 2.8mm: 63.6 m(208.7 ft)
3.6mm: 80.0 m (262.5 ft) 6mm: 120 m(393.7 ft) 8mm: 150.4 m (493.4 ft) |
| Observe | 2.8mm: 25.4 m(83.3 ft)
3.6mm: 32.0 m (105.0 ft) 6mm: 48 m(157.5 ft) 8mm: 60.2 m(197.5 ft) |
| Recognize | 2.8mm: 12.7 m(41.7 ft)
3.6mm: 16.0 m (52.5 ft) 6mm: 24 m(78.7 ft) 8mm: 30.1 m(98.8 ft) |
| Identify | 2.8mm: 6.4 m (21.0 ft)
3.6mm: 8.0 m(26.2 ft) 6mm:12 m (39.4 m) 8mm: 15 m (49.2 ft) |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
Video |
|
| Frame Rate | CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| White Balance | Auto; manual |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
| Certifications | |
| Certifications | CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Port |
|
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Interface | One channel built-in mic |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 5.2W (12V DC, IR on) |
Environmental |
|
| Operating Conditions | -40°C to +60°C (-40°F to 140°F);<95% (non-condensation) |
| Storage Conditions | -40°C to +60°C (-40°F to 140°F);<95% (non-condensation) |
| Ingress Protection &Vandal Resistance | IP67 |
| Construction | |
| Casing | Mental front cover+plastic main body+plastic bracket |
| Dimensions | 198.9 mm × 80.2 mm × 76.2 mm ( 7.83″ × 3.16″ × 3.00″ ) |
| Net Weight | 0.27 kg (0.60 lb) |
| Gross Weight | 0.46 kg (1.01 lb) |
