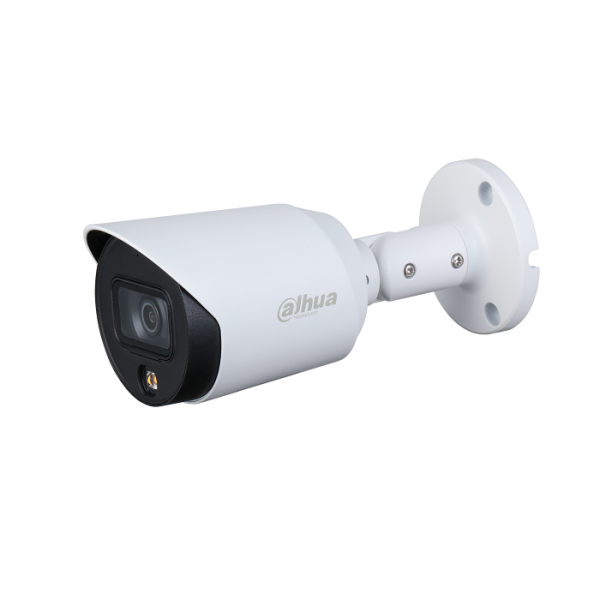

Dahua Lite Plus Series HD-CVI Cameras HAC-HFW1509T(-A)-LED
5MP Full-color Starlight HDCVI Bullet Camera
Camera |
|
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 2592 (H) × 1944 (V), 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s |
| Minimum Illumination | 0.005Lux/F1.2, 0Lux White Light on |
| S/N Ratio | More than 65dB |
| Fill Light Working Distance | Distance up to 20 m (65.61 ft) |
| Fill Light On/Off Control | Auto ; Manual |
| Fill Light Number | 1 |
Lens |
|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 3.6 mm |
| Max Aperture | F1.2 |
| Angle of View | 3.6 mm: 111° × 83° × 56°
(diagonal × horizontal × vertical) |
| Iris Type | Fixed iris |
| Close Focus Distance | 3.6 mm: 2.1 m (6.89 ft) |
| DORI Distance | |
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |
| DORI Distance | |
| Detect | 3.6mm: 80.0 m (262.5 ft) |
| Observe | 3.6mm: 32.0 m (105.0 ft) |
| Recognize | 3.6mm: 16.0 m (52.5 ft) |
| Identify | 3.6mm: 8.0 m(26.2 ft) |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–180° Rotation: 0°–360° |
Video |
|
| Frame Rate | CVI: PAL: 5M@20fps, 4M@25fps, 1080P@25fps; NTSC: 5M@20fps, 4M@30fps, 1080P@30fps AHD: PAL: 5M@20fps, 4M@25fps; NTSC: 5M@20fps, 4M@30fps TVI: PAL: 5M@20fps, 4M@25fps; NTSC: 5M@20fps, 4M@30fps CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 5M (2592 × 1944); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (704 × 576/704 × 480); |
| BLC | BLC/HLC/WDR |
| WDR | DWDR |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| White Balance | Auto; manual |
| Smart Light | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
Certifications |
|
| Certifications | CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Port |
|
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Input | Built-in mic (-A) |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 3.0W (12V DC, White Light on) |
| Environmental | |
| Operating Conditions | -40°C to +60°C (-40°F to 140°F);<95% (non-condensation) |
| Storage Conditions | -40°C to +60°C (-40°F to 140°F);<95% (non-condensation) |
| Ingress Protection &Vandal Resistance | IP67 |
Construction |
|
| Casing | Metal throughout the whole casing |
| Dimensions | 174.5 mm × 70.6 mm × 72.3 mm (6.87″ × 2.78″ × 2.85″) |
| Net Weight | 0.33 Kg (0.73 lb) |
| Gross Weight | 0.44 Kg (0.97 lb) |
