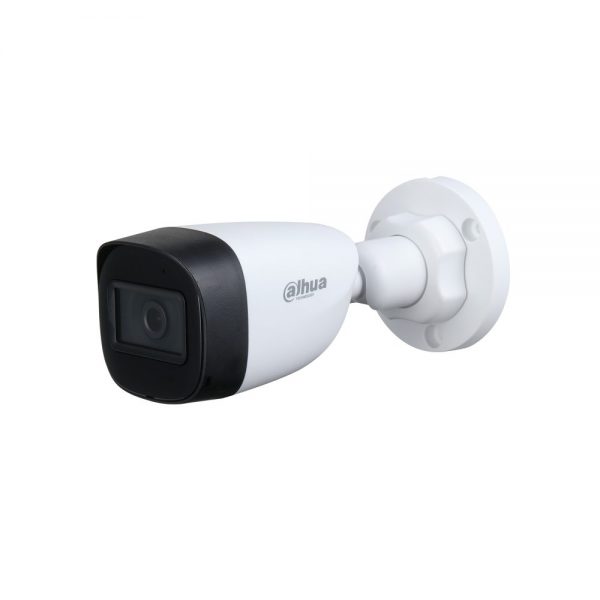

Dahua Lite Series HD-CVI Cameras HAC-HFW1200C
2MP HDCVI IR Bullet Camera
Camera |
|
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 1920(H)×1080(V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s |
| Minimum Illumination | 0.02 Lux/F1.9, 30IRE, 0 Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | 30 m (98.4 ft) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 2 |
Lens |
|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max Aperture | F1.9 |
| Angle of View | 2.8 mm: 119° x 101° x 54° (diagonal x horizontal x vertical)
3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical) |
| Iris Type | Fixed iris |
| Close Focus Distance | 2.8 mm: 0.5 m (1.7 ft)
3.6 mm: 0.8 m (2.6 ft) |
DORI Distance |
|
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |
| Distance | |
| Detect | 2.8mm: 38.6 m (126.6 ft)
3.6mm: 49.7 m (163.1 ft) |
| Observe | 2.8mm: 15.4 m (50.5 ft)
3.6mm: 19.9 m (65.3 ft) |
| Recognize | 2.8mm: 7.7 m(25.3 ft)
3.6mm: 9.9 m(32.5 ft) |
| Identify | 2.8mm: 3.9 m (12.8 ft)
3.6mm: 5m(16.4 ft) |
Pan / Tilt / Rotation |
|
| Pan/Tilt/Rotation | Pan: 0° ~ 360°
Tilt: 0°–90° Rotation: 0° ~ 360° |
Video |
|
| Resolution | 1080P (1920×1080) |
| Frame Rate | CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H |
| Resolution | 1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR |
| White Balance | Auto / Manual |
| Smart IR | Yes |
| Electronic Defog | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
Certifications |
|
| Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Port |
|
| Audio Interface | One channel built-in mic (-A) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
Power |
|
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 2.7W (12V DC, IR on) |
Environmental |
|
| Operating Conditions | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
| Storage Conditions | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
| Ingress Protection &Vandal Resistance | IP67 |
Construction |
|
| Casing | Plastic throughout the whole casing |
| Dimensions | 161.3mm×69.7mm×70.0mm（6.35″×2.75″×2.75″) |
| Net Weight | 0.19 Kg (0.55 lb) |
| Gross Weight | 0.29 Kg (0.64 lb) |
