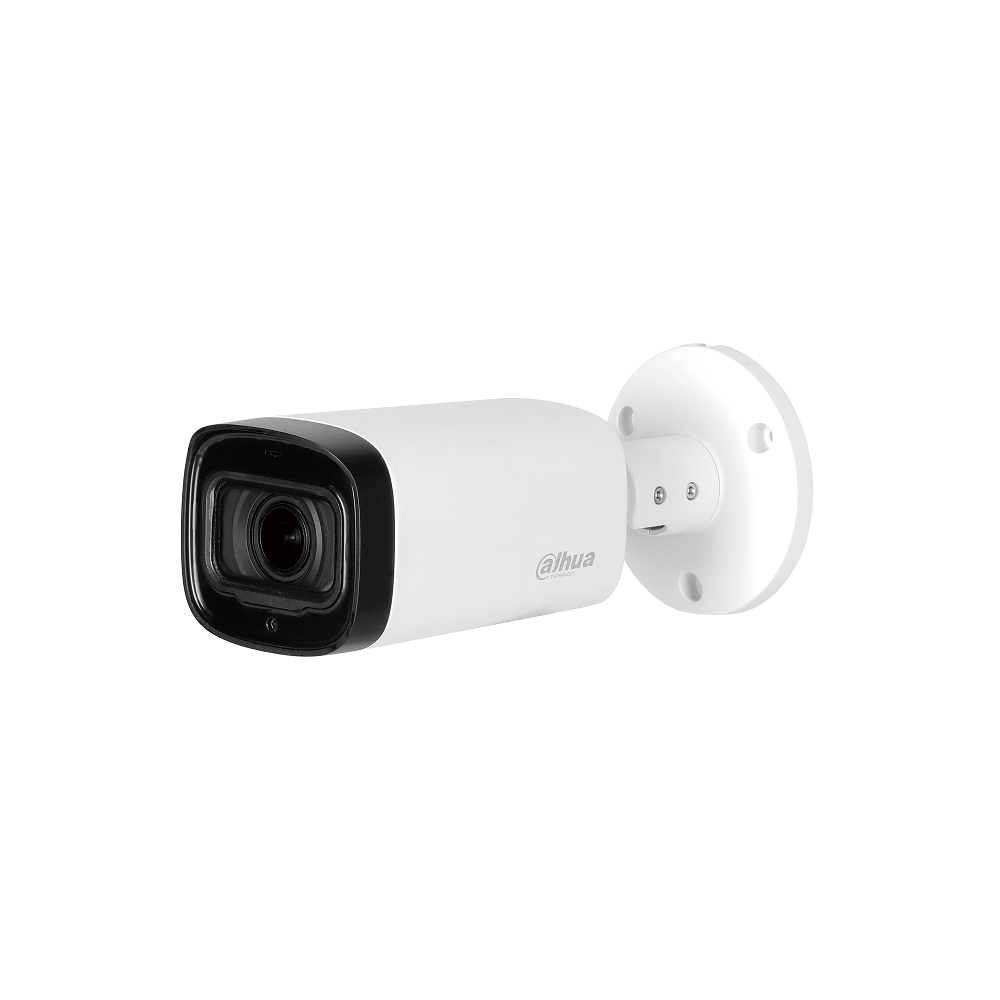

Dahua Lite Series HD-CVI Cameras HAC-HFW1200R-Z-IRE6
2MP HDCVI IR Bullet Camera
Features:
* The parameters and datasheets below can only be applied to 1200-S4 series.
- Max 30fps@1080P
- HD and SD output switchable
- 2.7-12mm Motorized lens
- Max. IR length 60m, Smart IR
- IP67, DC12V
Camera |
|||
| Image Sensor | 1/2.7 inch CMOS | ||
| Effective Pixels | 1920(H)×1080(V), 2MP | ||
| Scanning System | Progressive | ||
| Electronic Shutter Speed | PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s |
||
| Minimum Illumination | 0.02Lux/F1.8, 30IRE, 0Lux IR on | ||
| S/N Ratio | More than 65dB | ||
| Fill Light Working Distance | Up to 60m (197feet) | ||
| IR On/Off Control | Auto / Manual | ||
| IR LEDs | 4 | ||
| Lens | |||
| Lens Type | Motorized lens / Fixed iris | ||
| Mount Type | Board-in | ||
| Focal Length | 2.7 mm-12 mm | ||
| Max Aperture | F1.8 | ||
| Angle of View | H: 105.9°~33.4° | ||
| Focus Control | Motorized | ||
| Auto Focus | N/A | ||
| Close Focus Distance | 200mm
7.87” |
||
| DORI Distance | |||
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |||
|
|||
| Detect |
|
||
| Observe |
|
||
| Recognize |
|
||
| Identify |
|
||
| Pan / Tilt / Rotation | |||
| Pan/Tilt/Rotation | Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355° |
||
Video |
|||
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P | ||
| Resolution | 1080P (1920×1080) | ||
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) | ||
| Day/Night | Auto (ICR) / Manual | ||
| OSD Menu | Multi-language | ||
| BLC | BLC/HLC/DWDR | ||
| WDR | DWDR | ||
| Gain Control | AGC | ||
| Noise Reduction | 2D | ||
| White Balance | Auto / Manual | ||
| Smart IR | Auto / Manual | ||
| Certifications | |||
| Certifications | CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
||
| Interface | |||
| Audio Interface | N/A | ||
Power |
|||
| Power Supply | 12V ±30% DC | ||
| Power Consumption | Max 12.1W (12V DC, IR on) | ||
| Environmental | |||
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -30°C (-22°F) |
||
| Storage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH | ||
| Ingress Protection &Vandal Resistance | IP67 | ||
| Construction | |||
| Casing | Aluminium | ||
| Dimensions | 213mm×90.4mm×90.4mm (8.39″×3.56″×3.56″) | ||
| Net Weight | 0.55kg (1.21lb) | ||
| Gross Weight | 0.70kg (1.54lb) | ||
