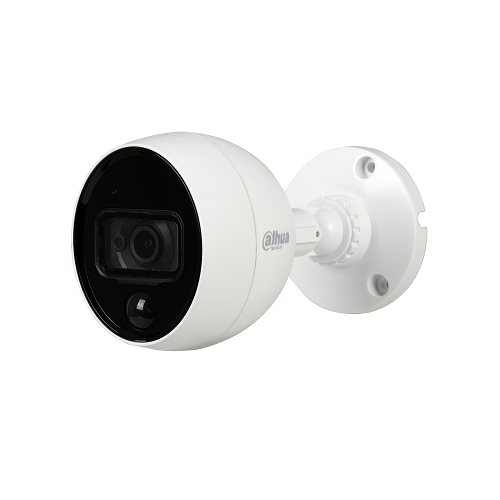

Dahua Lite Series HD-CVI Cameras HAC-ME1200B-PIR
2MP HDCVI MotionEye Camera
Features:
- Max 30fps@1080P
- HD and SD output switchable (video only)
- 2.8mm fixed lens
- 10m/110°detecting range/angle
- Quaternionic digital sensor
- Max. IR length 20m, Smart IR
- IP67, DC12V
Camera |
|||
| Image Sensor | 1/2.7 inch CMOS | ||
| Effective Pixels | 1920(H)×1080(V), 2MP | ||
| Scanning System | Progressive | ||
| Electronic Shutter Speed | PAL: 1/4~1/100000s
NTSC: 1/3~1/100000s |
||
| Minimum Illumination | 0.02Lux/F2.0(Color), 30IRE, 0Lux IR on | ||
| S/N Ratio | More than 65dB | ||
| Illumination Distance | Up to 20m (66feet) | ||
| Illumination On/Off Control | Auto ; Manual | ||
| Illuminator Number | 1 | ||
| Lens | |||
| Lens Type | Fixed lens / Fixed iris | ||
| Mount Type | Board-in | ||
| Focal Length | 2.8mm | ||
| Max Aperture | F2.0 | ||
| Angle of View | H: 112° | ||
| Focus Control | N/A | ||
| Close Focus Distance | 500mm
19.7” |
||
| DORI Distance | |||
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |||
|
|||
| Detect |
|
||
| Observe |
|
||
| Recognize |
|
||
| Identify |
|
||
| Pan / Tilt / Rotation | |||
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
||
Video |
|||
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P | ||
| Resolution | 1080P (1920×1080) | ||
| Day/Night | Auto (ICR) / Manual | ||
| OSD Menu | Multi-language | ||
| BLC | BLC/HLC/DWDR | ||
| WDR | DWDR | ||
| Gain Control | AGC | ||
| Noise Reduction | 2D | ||
| White Balance | Auto / manual | ||
| Smart IR | Auto / manual | ||
| PIR | |||
| Detection | Passive infrared | ||
| Detection Range | 10m, 110° | ||
| Alarm prompt | Red led | ||
| Installation height | Default bracket, wall mount, 2.2-2.5m | ||
| Certifications | |||
| Certifications | CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
||
Port |
|||
| Video Output | 1-channel BNC high definition video output / CVBS
video output (Can switch) |
||
| Audio Interface | NA | ||
| Power | |||
| Power Supply | 12V ±30% DC | ||
| Power Consumption | Max 4.1W (12V DC, IR on) | ||
| Environmental | |||
| Operating Conditions | -10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH
* Start up should be done at above -10°C (14°F) |
||
| Storage Conditions | -10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH | ||
| Ingress Protection &Vandal Resistance | IP67 | ||
Construction |
|||
| Casing | Aluminium (Front cover) + Plastic (Rear Barrel) | ||
| Dimensions | 146.6mm×72.4mm×83mm (5.77″×2.85″×3.27″) | ||
| Net Weight | 0.23kg (0.51lb) | ||
| Gross Weight | 0.30kg (0.66lb) | ||
