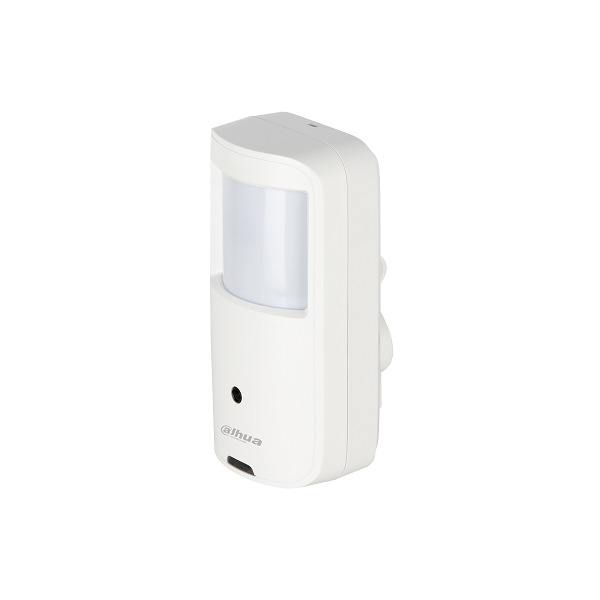

Dahua PIR & IoT Series HD-CVI Cameras HAC-ME1200A
2MP HDCVI PIR Cube Camera
Features:
- Max 30fps@1080P
- HD and SD output switchable (video only)
- 2.8mm/3.6mm fixed lens
- 10m/110°detecting range/angle
- DC12V
Camera |
|||
| Image Sensor | 1/2.7 inch CMOS | ||
| Effective Pixels | 1920(H)×1080(V), 2MP | ||
| Scanning System | Progressive | ||
| Electronic Shutter Speed | PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s |
||
| Minimum Illumination | 0.02Lux/F2.4(Color), 0.002Lux/F2.4(B/W) | ||
| S/N Ratio | More than 65dB | ||
| Illumination Distance | N/A | ||
| Illumination On/Off Control | N/A | ||
| Illuminator Number | N/A | ||
Lens |
|||
| Lens Type | Fixed lens / Fixed iris | ||
| Mount Type | Board-in | ||
| Focal Length | 3.6mm (2.8mm optional) | ||
| Max Aperture | F2.4 | ||
| Angle of View | H: 96°(107°) | ||
| Focus Control | N/A | ||
| Close Focus Distance | 500mm (500mm)
19.7” (19.7”) |
||
DORI Distance |
|||
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |||
|
|||
| Detect |
|
||
| Observe |
|
||
| Recognize |
|
||
| Identify |
|
||
Pan / Tilt / Rotation |
|||
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
||
Video |
|||
| Frame Rate | 25/30fps@1080P, 25/30fps@720P | ||
| Resolution | 1080P (1920×1080) | ||
| Day/Night | Electronic | ||
| OSD Menu | Multi-language | ||
| BLC | BLC/HLC/DWDR | ||
| WDR | DWDR | ||
| Gain Control | AGC | ||
| Noise Reduction | 2D | ||
| White Balance | Auto / manual | ||
| Smart IR | N/A | ||
PIR |
|||
| Detection | Passive infrared | ||
| Detection Range | 10m, 110° | ||
| Installation height | Default bracket, wall mount, 2.2-3m | ||
Certifications |
|||
| Certifications | CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
||
Port |
|||
| Video Output | 1-channel BNC high definition video output / CVBS
video output (Can switch) |
||
| Audio Interface | NA | ||
Power |
|||
| Power Supply | 12V ±30% DC | ||
| Power Consumption | Max 0.8W (12V DC, IR on) | ||
Environmental |
|||
| Operating Conditions | -10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH
* Start up should be done at above -10°C (14°F) |
||
| Storage Conditions | -10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH | ||
| Ingress Protection &Vandal Resistance | N/A | ||
Construction |
|||
| Casing | Plastic | ||
| Dimensions | 120mm×62mm×58mm (4.72″×2.44″×2.28″) | ||
| Net Weight | 0.13kg (0.29lb) | ||
| Gross Weight | 0.18kg (0.40lb) | ||
