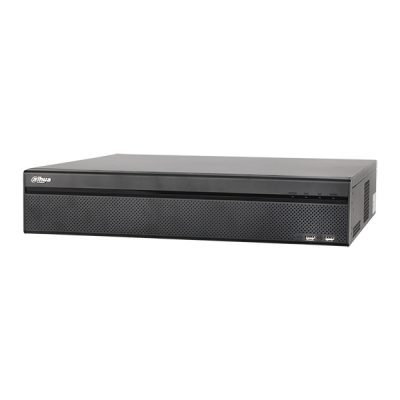

Dahua Pro Series Network Video Recorder NVR5416-16P-4KS2E
16 Channel 1.5U 16PoE 4K&H.265 Pro Network Video Recorder
System |
|||||
| Main Processor | Quad-core embedded processor | ||||
| Operating System | Embedded LINUX | ||||
Audio and Video |
|||||
| IP Camera Input | 16 Channel | ||||
| Two-way Talk | 1 Channel Input, 2 Channel Output, RCA | ||||
| Display | |||||
| Interface | 2 HDMI, 2 VGA | ||||
| Resolution | HDMI1: 3840 × 2160 , 1920 × 1080 , 1280 × 1024,
1280 × 720 , 1024 × 768 |
||||
| VGA1: 1920 × 1080 , 1280 × 1024,
1280 × 720 , 1024 × 768
|
|||||
| HDMI2/VGA2: 1920 × 1080 | |||||
| Decoding Capacity | 4-ch@8MP(30fps), 16-ch@1080P(30fps) | ||||
| Multi-screen Display | 1st Screen: 16CH: 1/4/8/9/16
2nd Screen: 1/4/8/9/16 |
||||
| OSD | Camera title, Time, Camera lock, Motion detection, Recording | ||||
Recording |
|||||
| Compression | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG | ||||
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc | ||||
| Record Rate | N/A | ||||
| Bit Rate | 16Kbps ~ 20Mbps Per Channel | ||||
| Record Mode | Manual, Schedule (Regular, MD(Motion Detection), Alarm, IVS), Stop | ||||
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec | ||||
Video Detection and Alarm |
|||||
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips | ||||
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering | ||||
| Alarm Input | 16 Channel | ||||
| Relay Output | 6 Channel | ||||
Playback and Backup |
|||||
| Sync Playback | 1/4/9/16 | ||||
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) | ||||
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom | ||||
| Backup Mode | USB Device/Network/eSATA Device | ||||
| Third-party Support | |||||
| Third-party Support | Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more | ||||
| Network | |||||
| Interface | 1 RJ-45 port (10/100/1000Mbps) | ||||
| PoE | 16 ports (IEEE802.3af/at)
1-8 ports support ePoE & EoC |
||||
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support IP camera, DVR, NVS, etc.), P2P | ||||
| Max. User Access | 128 users | ||||
| Smart Phone | iPhone, iPad, Android | ||||
| Interoperability | ONVIF 2.4, SDK, CGI | ||||
| Storage | |||||
| Internal HDD | 4 SATA III Ports, Up to 10 TB capacity for each HDD | ||||
| eSATA | 1 eSATA | ||||
| Auxiliary Interface | |||||
| USB | 3 USB Ports (2 Rear USB 3.0 , 1 Front USB 2.0) | ||||
| RS232 | 1 Port, for PC Communication and Keyboard | ||||
| RS485 | 1 Port, for PTZ control | ||||
| Electrical | |||||
| Power Supply | Single, AC100V ~ 240V, 50 ~ 60 Hz | ||||
| Power Consumption | NVR: <17.5W (Without HDD) | ||||
| PoE: Max 25.5W for single port 5total rated power, 80% control for protection |
|||||
| Fan | Smart fan, automatically adjust running speed | ||||
| Environmental | |||||
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa | ||||
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0~ 90% RH | ||||
| Construction | |||||
| Dimensions (WxDxH) | 1.5U, 440mm x 411.2mm x 76mm ;
(17.3″ x 16.2″ x 3.0″) |
||||
| Net Weight | 4.65kg (10.3 lb) (without HDD) | ||||
| Gross Weight | 7kg (15.4 lb) (without HDD) | ||||
| Installation | Rack-mounted | ||||
| Certifications | |||||
| CE | EN55032, EN55024, EN50130-4, EN60950-1 | ||||
| FCC | Part 15 Subpart B, ANSI C63.4-2014 | ||||
| UL | UL60950-1 | ||||
