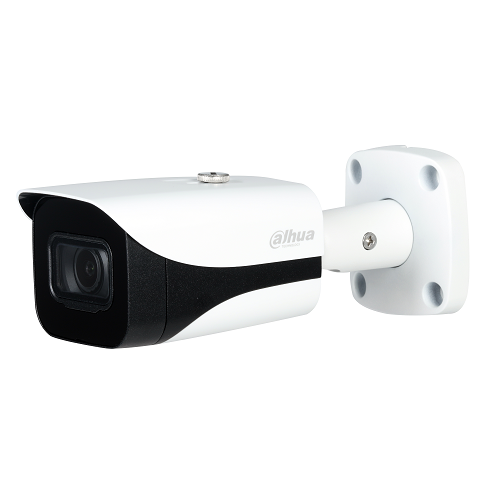

Dahua Pro Starlight Series HD-CVI Cameras HAC-HFW2501E-A
5MP Starlight HDCVI IR Bullet Camera
Camera |
|
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 2880 (H) × 1620 (V), 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s |
| Minimum Illumination | 0.001 Lux/F1.6, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| Illumination Distance | 40 m (131.2 ft) |
| Illumination On/Off Control | Auto / Manual |
| Illumination Number | 2 |
Lens |
|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max Aperture | F1.6 |
| Angle of View | 2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical) 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical) 6 mm: 65° × 57° × 30° (diagonal × horizontal × vertical) |
| Iris Type | Fixed iris |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) 3.6 mm: 1.6 m (5.2 ft) 6 mm: 3.1 m (10.2 ft) |
| DORI Distance | |
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |
| Distance | |
| Detect | 2.8mm:63.6 m (208.7 ft)
3.6mm:80 m (262.5 ft) 6mm:120 m (393.7 ft) |
| Observe | 2.8mm:25.4 m (83.3 ft)
3.6mm:32m(105.0 ft) 6mm:48m(157ft) |
| Recognize | 2.8mm:12.7 m (41.7 ft)
3.6mm: 16m(52.5 ft) 6mm: 24m(79ft) |
| Identify | 2.8mm:6.4m(21.0 ft)
3.6mm:8m(26.2 ft) 6mm:12m(39ft) |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
Video |
|
| Frame Rate | CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | 120dB |
| Gain Control | Auto / manual |
| Noise Reduction | 2D NR/3D NR |
| White Balance | Auto / manual |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 areas, rectangle) |
Certifications |
|
| Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
| Audio Interface | One channel built-in mic |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 5.9W (12V DC, IR on) |
Environmental |
|
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Ingress Protection &Vandal Resistance | IP67 |
Construction |
|
| Casing | Metal: Front cover+rear barrel+bracket Plastic: Sunshield cover+lower decorative cover |
| Dimensions | 79.9 mm × 70 mm × 70 mm (7.08″ × 2.75″ × 2.75″) |
| Net Weight | 0.42 kg (0.93 lb) |
| Gross Weight | 0.56 kg (1.23 lb) |
