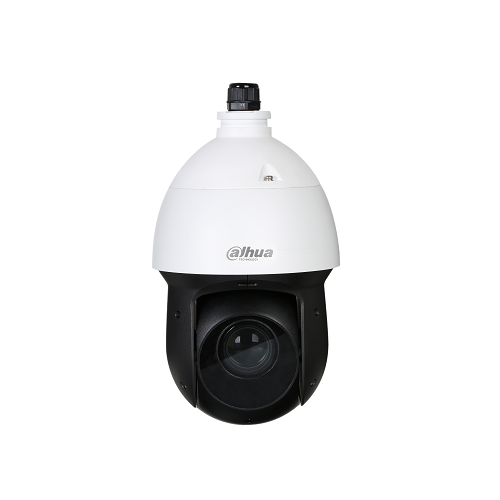

Dahua PTZ Series HD-CVI Cameras SD49225-HC-LA
2MP 25x Starlight IR PTZ HDCVI Camera
Camera |
|
| Image Sensor | 1/2.8″ STARVIS™ CMOS |
| Effective Pixels | 1920 (H) x 1080 (V), 2MP |
| Scanning System | Progressive |
| ROM | 16MB |
| RAM | 256MB |
| Electronic Shutter Speed | 1/3 s–1/100000 s |
| Minimum Illumination | Color: 0.005 Lux@F1.6 B/W: 0.0005 Lux@F1.6 0 Lux@F1.6 (IR on) |
| Illumination Distance | 100 m (328.08 ft) |
| Illumination On/Off Control | Auto / Manual |
| Illumination Number | 6 |
Lens |
|
| Focal Length | 4.8 mm–120 mm |
| Max Aperture | F1.6–F3.5 |
| Angle of View | H: 58.5°–2.8°;
V: 33.2°–1.5°; D: 67.5°–3.2° |
| Optical Zoom | 25x |
| Focus Control | Auto/Semi-Auto/Manual |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Iris Control | Auto / Manual |
| DORI Distance | |
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |
| Distance | |
| Detect | 1655.2 m (5430.45 ft) |
| Observe | 656.8 m (2154.86 ft) |
| Recognize | 331.0 m (1085.96 ft) |
| Identify | 165.5 m (542.98 ft) |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: -15°–+90°; auto flip 180° |
| Manual Control Speed | Pan: 0.1°–200°/s; Tilt: 0.1°–120°/s |
| Preset Speed | Pan: 240°/s; Tilt: 200°/s |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Speed Adjustment | Support |
| Power-off Memory | Support |
| Idle Motion | Preset/Tour/Pattern/Scanning |
| Protocol | DH-SD Pelco-P/D (auto recognition) |
Video |
|
| Frame Rate | 1080P (25/30 fps), 720P (25/30/50/60 fps) |
| Resolution | 1080P (1920 × 1080); 720P (1280 × 720);
D1 (704 × 576/704 × 480) |
| Day/Night | Support |
| BLC | Support |
| WDR | 120dB |
| HLC | Support |
| Gain Control | Auto / manual |
| Noise Reduction | 2D/3D |
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
| Defog | Electronic |
| Digital Zoom | 16x |
| Flip | 0°/180° |
| Privacy Masking | Up to 24 areas |
| Certifications | |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
| Audio | |
| Compression | G.711a; G.711Mu |
| Port | |
| Audio Input | 1 (LINE IN; bare wire) |
| Alarm Input | 2 |
| Alarm Output | 1 |
| Power | |
| Power Supply | DC 12V/3A ± 10% |
| Power Consumption | 9.6 W 23.2 W (IR light on, PTZ) |
Environmental |
|
| Operating Conditions | –40°C to +70°C (–40°F to +158°F) |
| Operating Humidity | ≤ 95%RH |
| Protection | IP66; TVS 6000V lightning protection; surge protection |
Structure |
|
| Dimensions | 295.4 mm × Φ160.0 mm (11.63″ × Φ6.30″) |
| Net Weight | 3 kg (6.61 lb) |
| Gross Weight | 4.2 kg (9.26 lb) |
