DAHUA RETAIL KIT-N2104

Categories: ,

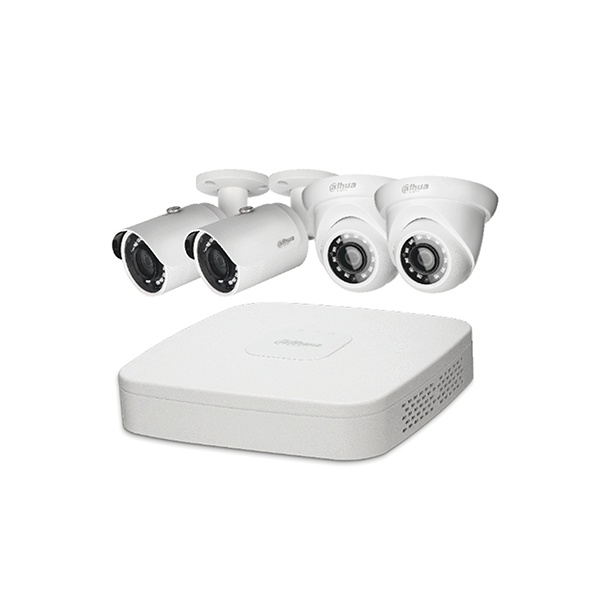

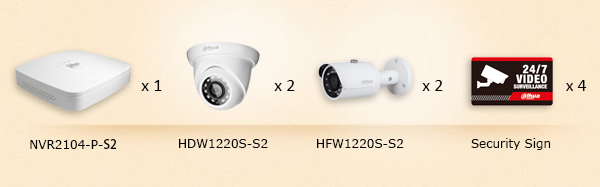

KIT-N2104 (NVR2104-P-S2, 4ch NVR with 4-port PoE, IPC-HDW1220S, IPC-HFW1220S)

Features:

  • Support P2P, allowing easier home applications
  • All channel synchronous real-time playback
  • All cameras with 1080P real-time preview
  • H.264 Dual-stream video compression
  • HDMI/VGA simultaneous video output
  • All channel 1080P real-time recording
  • POE Power Over Ethernet
  • Plug and play
  • Support Easy4ip, QR code scan & add
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone(Easy4ip)
Add to Enquiry List
Model KIT-NVR2104
System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 4 channel
Two-way Talk 1 channel Input,1 channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4
OSD Camera title, Time, Camera lock, Motion detection, Recording
Recording
Compression Smart H.264+/H.264/MJPEG
Resolution 6Mp, 5Mp, 4Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.
Record Rate Max 80Mbps
Bit Rate 48~8192kbps
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection
Trigger Events Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
Video Detection Motion Detection, MD Zones: 396(22×18), & Camera Blank
Playback & Backup
Sync Playback 1/4
Search Mode Time/Date, MD & Exact search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network
Network
Ethernet 1RJ-45 port (10/100Mbps)
PoE 4 ports (IEEE802.3af)
Network Function HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max User Access 128 users
Smart Phone iPhone, iPad, Android
Storage
Internal HDD 1 SATA III Port, up to 6TB capacity for each HDD
Auxiliary Interface
USB 2 ports (2 Rear), USB2.0
General
Power Supply DC48V/1.25A
Power Consumption <4W (without HDD)
Working Environment -10°C~+55°C/10%~90%RH/86~106kpa
Camera
Image Sensor 1/2.9” 2Megapixel progressive scan CMOS
Effective Pixels 1920(H)x1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)s ~1/100000s
Min. Illumination 0. 1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC /HLC /DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm
Max Aperture F2.0
Focus Control Manual
Angle of View H: 83°
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264+/H.264
Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate Main Stream 1080P(1 ~ 25/30fps)
Sub Stream D1 (1 ~ 25/30fps)
Bit Rate H.264: 5kbps～8192bps
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
Compatibility ONVIF, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android Phone
General
Power Supply DC12V, PoE (802.3af)
Power Consumption <5.1W(IR on)
Working Environment -30°C~+60°C, Less than 95%RH
Ingress Protection IP67
Carton
Dimension(W×D×H) 387mm×222mm×332mm
