DAHUA RETAIL KIT-C5104

Categories: ,

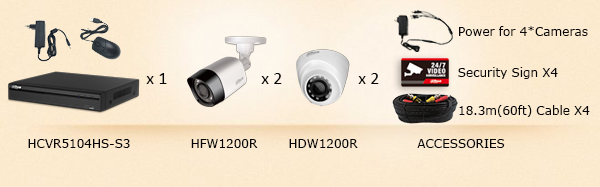

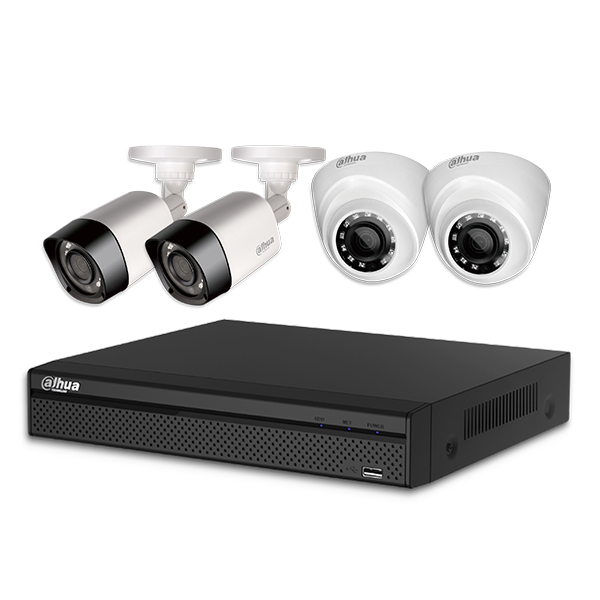

KIT-C5104 (HCVR5104HS-S3 4ch Tribrid DVR, HDW1200R-S3, HFW1200R-S3)

Features:

  • Support P2P, allowing easier home applications
  • All channel synchronous real-time playback
  • All cameras with 1080P real-time preview
  • H.264 dual-stream video compression
  • HDMI/VGA simultaneous video output
  • All channel non-real-time 1080P recording
  • Multiple network monitoring: web-browser, smart phone/tablet APP
Add to Enquiry List
Model KIT-C5104
System
Main Processor Embedded processor
Operating System Embedded LINUX
Video
Input 4 channel, BNC
Standard NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/6
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression H.264/G.711
Record Rate Main Stream: 1080P(1~15fps)
1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Sub Stream: D1/CIF/QCIF(1~25/30fps)
Bit Rate 1~6144Kb/s
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback 1/4
Search Mode Time/Date, MD & Exact search (accurate to second)
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Internal SATA burner/Network
Network
Ethernet RJ-45 port (10/100M)
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
Storage
Internal HDD 1 SATA port, up to 6TB
Auxiliary Interface
USB Interface 2 ports(1 Rear), USB2.0
General
Power Supply DC12V/2A
Power Consumption 10W(without HDD)
Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
Camera DH-HAC-HFW1200R-0360B-S3 DH-HAC-HDW1200R-0360B-S3
Image Sensor 1/2.7″ 2Megapixel CMOS
Effective Pixels 1930(H)×1088(V)
Electronic Shutter 1/50s~1/100,000s,1/60s~1/100,000s
Video Frame Rate 25fps/50fps/30fps/60fps@720P, 25fps/30fps@1080P
Synchronization Internal
Mini. Illumination 0.02Lux@F2.0(AGC ON), 0Lux IR on
Video Output 1-channel BNC high definition video output/ CVBS standard definition video output (Can switch)
Max. IR LEDs Length 20m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation DWDR
Noise Reduction 2D
Focal Length 3.6mm fixed lens
Angle of View H: 89.9°
Mount Type M12
Power Supply DC12V±25%
Power Consumption Max 2.8W
Working Environment -40°C~+60°C / Less than 95%RH (no condensation)
Ingress Protection IP67 NA
Carton
Dimension(W×D×H) 387mm×254mm×408mm
