HAC-HFW1220RM

Categories: , ,

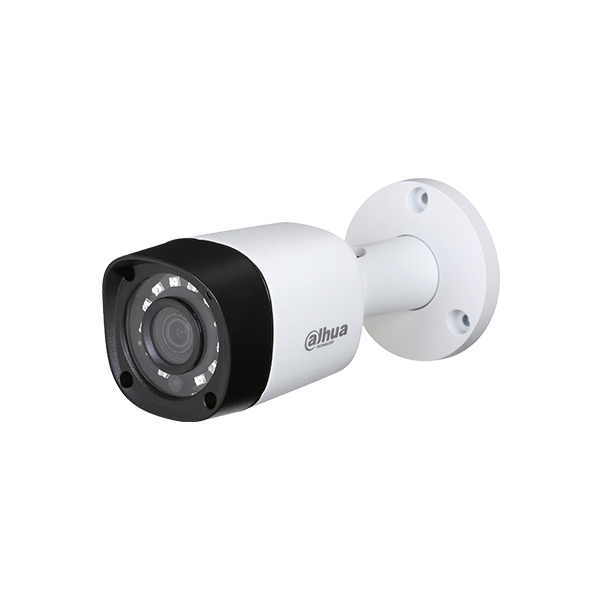

2MP HDCVI IR Bullet Camera

Features:

  • Max 30fps@1080P
  • HD and SD output switchable
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • Max. IR length 20m, Smart IR
  • IP67, DC12V

Add to Enquiry List
Camera
Image Sensor 1/2.9″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F2.0, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 12
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F2.0
Angle of View H: 82.8° (106°/51.2°)
Focus Control N/A
Close Focus Distance 800mm (500mm/1900mm)

31.5 (19.7/74.8)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°
Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface N/A
Electrical
Power Supply 12V DC ±25%
Power Consumption Max 2.8W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal Resistance IP67
Construction
Casing Aluminium
Dimensions 156.3mm×70mm×70mm (6.15″×2.76″×2.76″)
Net Weight 0.30kg (0.66lb)
Gross Weight 0.37kg (0.81lb)
Not available.
Type Download
Datasheet
User Manual
Installation Guide
Drawings (Dimension)
Drawings (Installation)
Not available.
