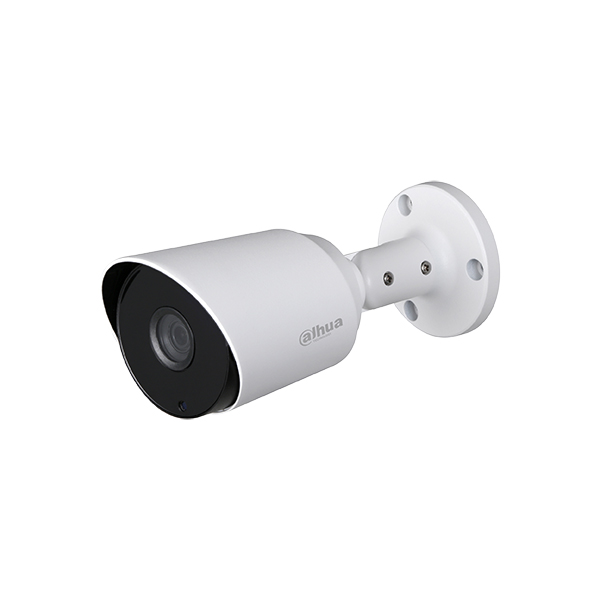

Dahua Lite Series HD-CVI HAC-HFW1400T
4MP IR Outdoor Bullet HD-CVI Camera
| Camera | |||||
| Image Sensor | 1/3″ CMOS | ||||
| Effective Pixels | 2688(H)×1520(V), 4.1MP | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
||||
| Minimum Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on | ||||
| S/N Ratio | More than 65dB | ||||
| IR Distance | Up to 20m (66feet) | ||||
| IR On/Off Control | Auto / Manual | ||||
| IR LEDs | 12 | ||||
| Lens | |||||
| Lens Type | Fixed lens / Fixed iris | ||||
| Mount Type | Board-in | ||||
| Focal Length | 3.6mm (2.8mm, 6mm Optional) | ||||
| Max Aperture | F2.0 | ||||
| Angle of View | H: 84.8° (99.7°/52.5°) | ||||
| Focus Control | – | ||||
| Close Focus Distance | 1100mm (800mm/2200mm) 43.3” (31.5”/86.6”) |
||||
| DORI Distance | ||||||
| Take RG59 as an example (Max. DC resistance < 5.0Ω/100m) | ||||||
| DORI Definition | Distance | |||||
| Detect | 25px/m (8px/ft) |
2.8mm: 63m(208ft) 3.6mm: 80m(262ft) 6mm: 117m(385ft) |
||||
| Observe | 63px/m (19px/ft) |
2.8mm: 25m(83ft) 3.6mm: 32m(105ft) 6mm: 47m(154ft) |
||||
| Recognize | 125px/m (38px/ft) |
2.8mm: 13m(42ft) 3.6mm: 16m(53ft) 6mm: 23m(77ft) |
||||
| Identify | 250ppm (76px/ft) |
2.8mm: 6m(21ft) 3.6mm: 8m(26ft) 6mm: 12m(39ft) |
||||
| Pan/ Tilt/ Rotation | ||||||
| Pan/ Tilt/ Rotation | Pan: 0° ~360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|||||
| Video | ||||||
| Resolution | 4MP (2560×1440) | |||||
| Frame Rate | 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P | |||||
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) | |||||
| Day/Night | Auto (ICR) / Manual | |||||
| OSD Menu | Multi-language | |||||
| BLC Mode | BLC / HLC / DWDR | |||||
| WDR | DWDR | |||||
| Gain Control | AGC | |||||
| Noise Reduction | 2D | |||||
| White Balance | Auto / Manual | |||||
| Smart IR | Auto / Manual | |||||
| Certifications | ||||||
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|||||
| Interface | ||||||
| Audio Interface | – | |||||
| Electrical | ||||||
| Power Supply | 12V DC ±25% | |||||
| Power Consumption | Max 3.2W (12V DC, IR on) | |||||
| Environmental | ||||||
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH *Start up should be done at above -40°C (-40°F) |
|||||
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH | |||||
| Ingress Protection & Vandal Resistance | IP67 | |||||
| Construction | ||||||
| Casing | Aluminium | |||||
| Dimensions | 176mm×72.4mm×72.5mm (6.93″×2.85″×2.85″) | |||||
| Net Weight | 0.36kg (0.79lb) | |||||
| Gross Weight | 0.43kg (0.95lb) | |||||
