HAC-HFW2401R-Z-IRE6

Categories: , ,

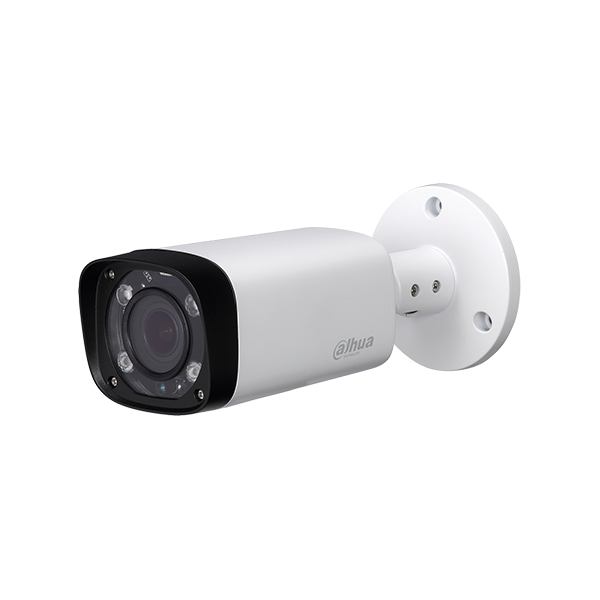

4MP WDR HDCVI IR Outdoor Bullet Camera

Features:

  • 120dB True WDR, 3DNR
  • Max 4MP real-time
  • HD and SD dual-output
  • 2.7-12mm motorized lens
  • Max. IR length 60m, Smart IR
  • IP67, DC12V

Add to Enquiry List
Camera
Image Sensor 1/3″ CMOS
Effective Pixels 2688(H)×1520(V), 4.1MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/4s~1/100,000s

NTSC: 1/3s~1/100,000s
Minimum Illumination 0.01Lux/F1.3, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 60m (197feet)
IR On/Off Control Auto / Manual
IR LEDs 4
Lens
Lens Type Motorized lens / Fixed iris
Mount Type Board-in
Focal Length 2.7-12mm
Max Aperture F1.3
Angle of View H: 98°~26°
Focus Control Auto / Manual
Close Focus Distance 200mm

7.87”
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°

Tilt: 0° ~ 87°

Rotation: 0° ~ 360°
Video
Resolution 4MP (2560×1440)
Frame Rate 25fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface N/A
Electrical
Power Supply 12V DC ±25%
Power Consumption Max 11.1W (12V DC, IR on)
Environmental
Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -30°C (-22°F)
Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance IP67
Construction
Casing Aluminium
Dimensions 213.0mm×90.4mm×90.4mm (8.39″×3.56″×3.56″)
Net Weight 0.61kg (1.34lb)
Gross Weight 0.74kg (1.63lb)
Not available.
Type Download
Datasheet
User Manual
Drawings (Dimension)
Drawings (Installation)
Not available.
