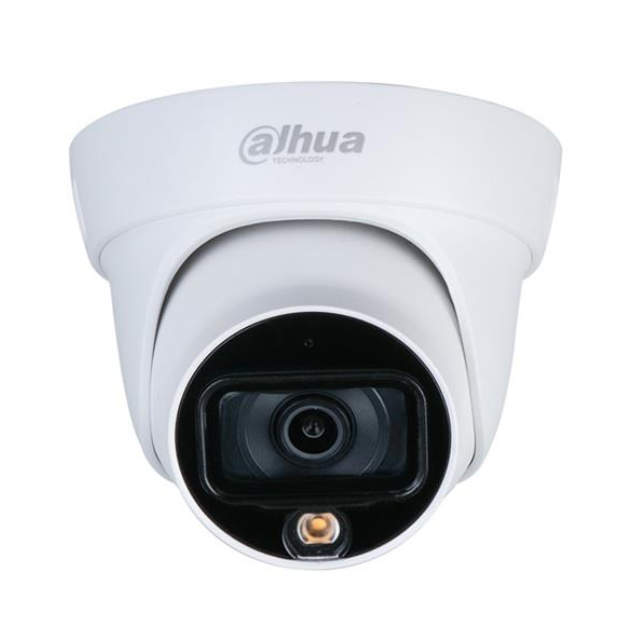

Dahua HDW1239TL-A-LED
2MP Full-color Starlight HDCVI Eyeball Camera
| Technical Specification | |||||
| Image Sensor | 1/2.8 inch 2.16 Mega Pixels CMOS | ||||
| Effective Pixels | 1920 (H)×1080 (V), 2MP | ||||
| Electronic Shutter Speed | PAL:1/25s–1/100000s NTSC:1/30s–1/100000s |
||||
| Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux white Light on | ||||
| Fill Light (White Light) Distance | Distance up to 20m (65.61ft) | ||||
| Fill Light On/Off Control | Auto; Manual | ||||
| Fill Light Number | 1 | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8m/3.6mm | ||||
| Max. Aperture | F1.6 | ||||
| Angle of View (D x H x V) |
2.8mm: 126.2° × 106.0° × 56.5° | ||||
| 3.6mm: 103.6° x 86.9° x 46.3° | |||||
| Iris Type | Fixed iris | ||||
| Close Focus Distance | 2.8mm: 0.6m (1.97ft) | ||||
| 3.6mm: 1.2m (3.94ft) | |||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 38.6m (126.6ft) | 15.4m (50.5ft) | 7.7m (25.3ft) |
3.9m (12.8ft) |
|
| 3.6mm | 55.2m (181.1ft) | 22.1m (72.5ft) | 11.0m (36.0ft) |
5.5m (18.0ft) |
|
| Video | |||||
| Video Frame Rate | CVI: PAL: 1080@25fps, 720@25fps, 720@50fps; NTSC: 1080@30fps, 720@30fps, 720@60fpsAHD: PAL: 1080@25fps,720@25fps; NTSC: 1080@30fps,720@30fps TVI: PAL: 1080@25fps,720@25fps,720@50fps; NTSC: 1080@30fps,720@30fps,720@60fpsCVBS: PAL: 960×576H; NTSC: 960×480H |
||||
| BLC | BLC / HLC / WDR | ||||
| WDR | DWDR | ||||
| White Balance | Auto; Manual | ||||
| Gain Control | Auto; Manual | ||||
| Noise Reduction | 2D NR | ||||
| Smart Light | Yes | ||||
| Electronic Defog | Yes | ||||
| Digital Zoom | 16X | ||||
| Mirror | Off/ On | ||||
| Privacy Masking | Off/ On (4 area, rectangle) | ||||
| Certification | |||||
| Certifications | CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | ||||
| Interface | |||||
| Audio Interface | Built-in mic (-A) | ||||
| Port | |||||
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Power | |||||
| Power Supply | 12V ±30% DC | ||||
| Power Consumption | Max 3W (12V DC, white light on) | ||||
| Environment | |||||
| Operating Temperature | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) | ||||
| Storage Temperature | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) | ||||
| Protection Grade | IP67 | ||||
| Structure | |||||
| Casing | Inner core: metal+plastic; cover: plastic;pedestal: plastic | ||||
| Dimensions | φ97mm×85.8mm (φ3.82″×3.38″) | ||||
| Net Weight | 0.22Kg (0.49lb) | ||||
| Gross Weight | 0.28Kg (0.62lb) | ||||
