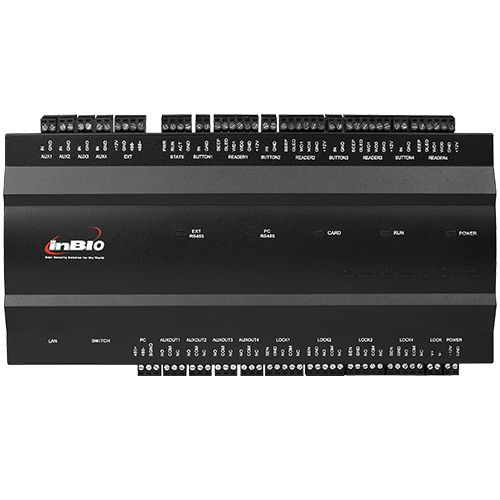

INBIO-260

Features:

Over-current protection, over-voltage protection, and reversal protection for the power supply and all of the input and output terminals
Reliable network system of controllers using either TCP/IP or RS-485 Serial communication
Supports different Wiegand formats, and connects to ZK readers as well as HID, Mifare, generic ID card readers
Connects with a variety of electric locks, sensors, exit buttons, alarm devices, and indicators
Can be integrated with other security systems such as CCTV, Intrusion Detection, Fire Alarm Release, and elevastor Control for total security system. Directly compatible with ZK’s biometric reader controllers
Easy-to-use and intuitive programming with ZKAccess Software
System management by browser from client PC’s. No need to install software on each client
Programming of special logic between doors is set up with simple pull downs menus. No special scripts or code is required
Management software allows indication of real-time door status and remote commanding of door open/close state. Alarm conditions such as forced open and extended open alarms are reported
Advanced access control capabilities are built into the hardware, including Anti-Passback, Dual and Multi-Card Authentication, and Duress Mode

Specifications
Number of Doors Controller	2 Door
Numbers of Readers Supported	8 (4 RS-485 Reader, 4 26-bit wiegand reader)
Types of Readers Supported	26-bit Wiegand and RS485 FR Series Reader
Number of Inputs	6 (2 Exit Device, 2 Door Status, 2 AUX)
Number of Outputs	4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output)
Card Holders Capacity	30,000
Fingerprint Capacity	3,000 (optional 20,000)
Log Events Capacity	100,000
Communication	TCP/IP and RS-485
Package Dimension	350 (L) x 90 (H) x 300 (W) mm
Package Weight	3.6kg
CPU	32 bit 400MHz CPU
RAM	32M
Flash Memory	128M
Power	9.6V – 14.4V DC
Operating Temp	0 – 45°C
Operating Humidity	20% to 80%
