IPC-HUM8231-E1

Categories: , ,

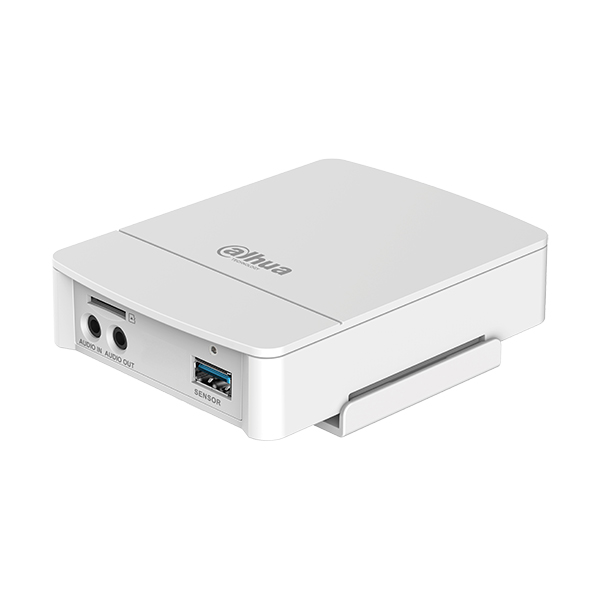

2MP Covert Pinhole Network Camera-Main Box

Features:

  • H.265&H.264 triple-stream encoding
  • Support Smart H.265+/H.264+
  • 50/60fps@1080P(1920×1080)
  • Day/Night(Electronic), WDR, 3DNR, AWB, AGC, BLC
  • Smart detection
  • Micro SD memory, PoE
  • Multiple Lens Unit optional
  • Require a Lens Unit to work together

Add to Enquiry List
Camera
RAM/ROM 512MB/32MB
S/N Ratio More than 50dB
Intelligence
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 1080P(1~50/60fps)
Sub Stream: D1(1~50/60fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24~9472Kbps
H.265: 14~5632Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image –
Smart IR –
Defog –
Digital Zoom –
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Certifications
Certifications CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;IGMP; SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS
Local PC for instant recording
Micro SD Card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Interface
Video Interface –
Audio Interface 1/1 channel In/Out
RS485 1 port
Alarm 2 channel In: 5mA 5VDC
2 channel Out: 1A 30VDC / 0.5A 50VAC
Electrical
Power Supply DC12V, PoE(802.3af)(Class 0)
Power Consumption <6W (working together with lens unit)
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection –
Vandal Resistance –
Construction
Casing Metal
Dimensions 110.0mm×82.7mm×24.0mm (4.33”×3.26”×0.95”)
Net Weight 0.21Kg (0.46lb)
Gross Weight 0.30Kg (0.66lb)
Not available.
Type Download
Datasheet
User Manual
User Manual
Drawing-Dimension
Not available.
