| Technical Specification | |

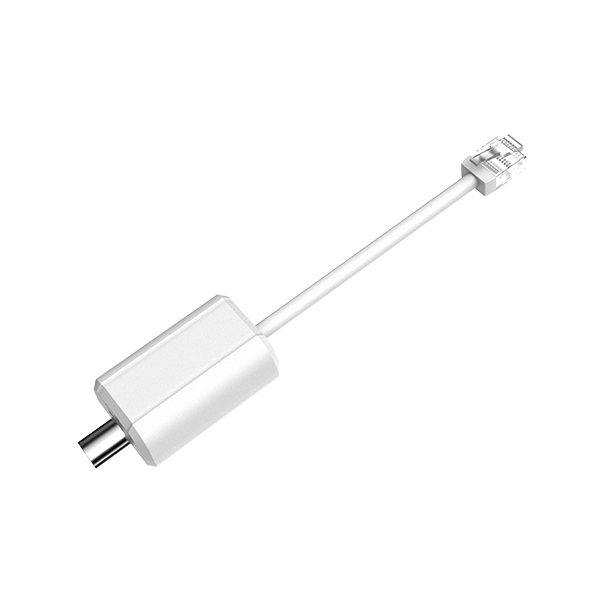

| Model | LR1002 |
| Function Port | 1*10/100 Mbps Base-TX 1*BNC |
| Power Concumption | <1W |
| Transmission Bandwidth | RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps |
| PoE Protocol | – (Based on the power input from the ePoE switch) |
| Network Standard | IEEE802.3, IEEE802.3u |
| Lightning Protection | Common Mode 6KV Differential Mode 2KV |
| Operating Temperature | -40°C-60°C |
| Operating Humidity | 0%~95% |
| Weight | 28.3g |
| Dimension (W×D×H) | 56mm×27mm×21mm |
| Cable (m) | Communication Bandwidth (Mbps) | PoE Max Load Capacity (W) | Hi-PoE Max Load Capacity (W) | Network Operating Mode |
| 100 | 100 | 25.5 | 50 | IEEE/E100 |
| 200 | 100 | 25.5 | 30 | E100 |
| 300 | 100 | 18 | 18 | E100 |
| 400 | 100 | 15 | 15 | E100 |
| 500 | 10 | 12 | 12 | E10 |
| 800 | 10 | 6 | 6 | E10 |
| 1000 | 10 | 5 | 5 | E10 |
| ePoE switch power supply voltage is 48V. The cable is RG59 coaxial cable, 100m DC impedance is no more than 5Ω. |
||||
| Cable (m) | Bandwidth (Mbps) | PoE Load Capacity (W) | Hi-PoE Load Capacity (W) | Working Mode |
| 100 | 100 | 25.5 | 53 | IEEE/E100 |
| 200 | 100 | 25.5 | 47 | E100 |
| 300 | 100 | 25.5 | 32 | E100 |
| 400 | 100 | 20 | 23 | E100 |
| 500 | 10 | 16 | 16 | E10 |
| 800 | 10 | 10 | 10 | E10 |
| 1000 | 10 | 8 | 8 | E10 |
| ePoE switch power supply voltage is 53V. The cable is RG59 coaxial cable, 100m DC impedance is no more than 5Ω. |
||||
