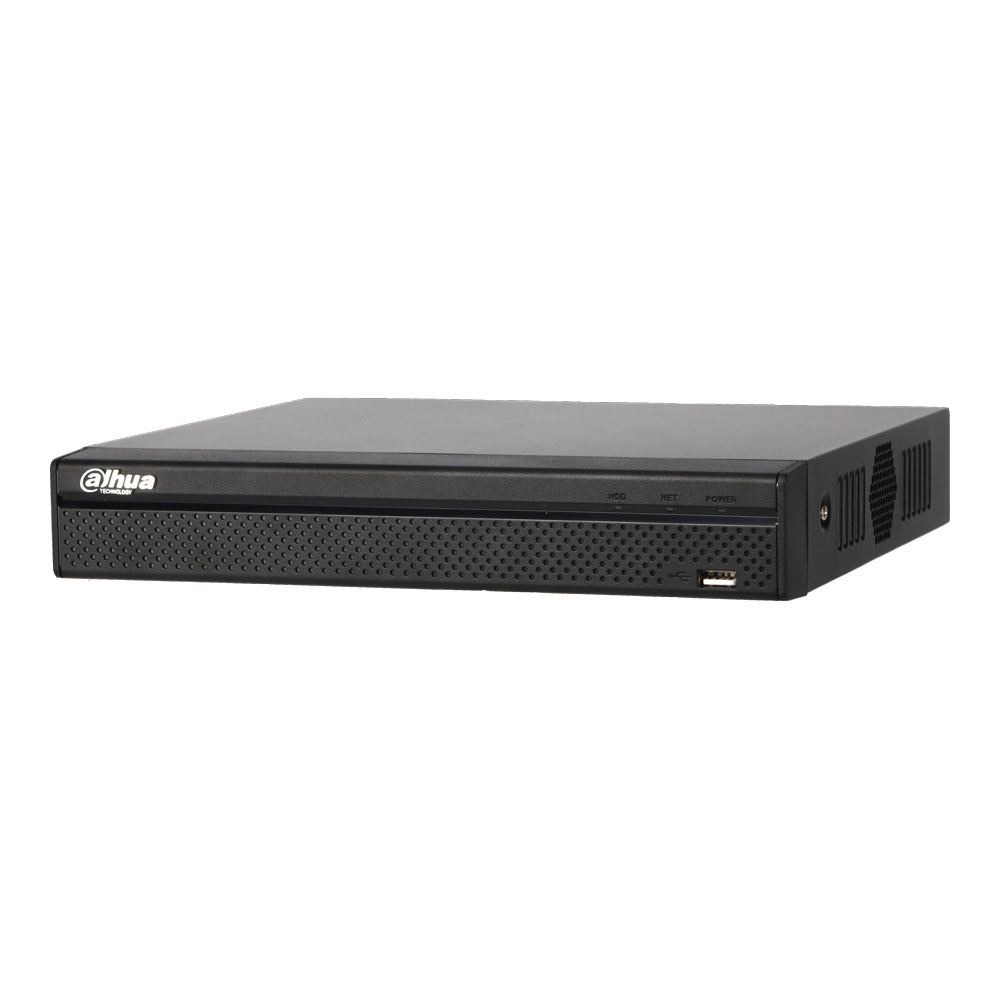

NVR2116HS-4KS2

16 Channel Compact 1U Lite H.265 Network Video Recorder

Features:

  • H.265/H.264 codec decoding
  • Max 80Mbps incoming bandwidth
  • Up to 8Mp resolution preview & playback
  • Up to 1ch@8MP/4ch@1080P decoding
  • HDMI/VGA simultaneous video output



Technical Specification
Main Processor Dual-core Embedded Processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 16 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720
Decoding Capacity 1ch@8MP 30fps, 4ch@1080P 30fps
Multi-screen Display 1/4/8/9/16
OSD Camera title, Time, Camera lock, Motion detection, Recording
Recording
Compression H.265+.H.264
Resolution 8Mp/6MP/5MP/4MP/3MP/1080P/720P/D1&etc
Record Rate 80Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD, Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 x 18), and Tampering
Alarm Input N/A
Relay Output N/A
Playback and Backup
Sync Playback 1/4
Search Mode Time/Date, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Third-party Support
Third-party Support Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonice, Pelco, Samsung, Sanyo, Sony, Videotec, and more
Network
Interface 1 RJ-45 port (10/100/1000Mbps)
PoE N/A
Network Function HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS IP Search (Support Dahua IP Camera, DVR, NVS and etc.), Easy4ip
Optical Fiber Interface N/A
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, SDK, CGI
Storage
Internal HDD 1 SATA III Port, up to 6TB capacity for each HDD
HDD Mode Single
eSATA N/A
Auxiliary Interface
USB 2 Ports (1 Rear USB 2.0,1 Front USB 2.0)
RS232 N/A
RS485 N/A
Electrical
Power Supply Single, DC12V/2A
Power Consumption <3W (without HDD)
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0~ 90% RH
Construction
Dimensions (WxDxH) Compact 1U, 260mmx224.9mmx47.6mm (10.2″x8.9″x1.9″)
Net Weight 0.8kg (1.76lb) (without HDD)
Gross Weight 1.6kg (3.53lb) (without HDD)
Certifications
CE EN55032, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
UL UL60950-1
