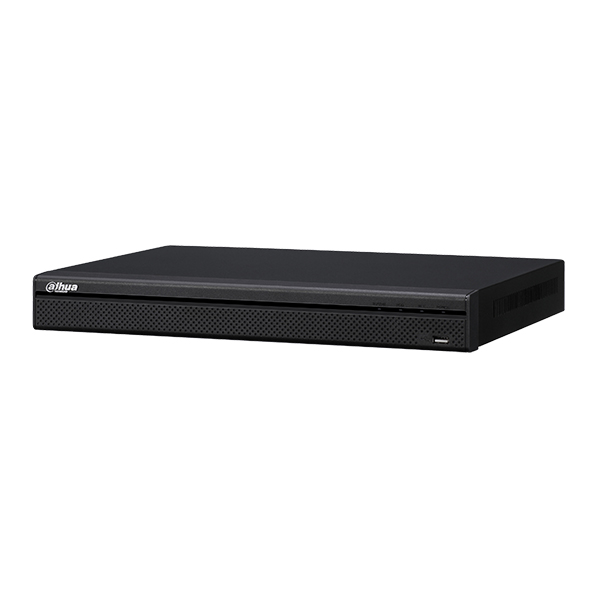

NVR4208/4216/4232-4KS2

Categories: , ,

8/16/32 Channel 1U 4K&H.265 Lite Network Video Recorder

Features:

  • H.265/H.264 codec decoding
  • Max 200Mbps Incoming Bandwidth
  • Up to 8MP Resolution for Preview and Playback
  • Up to 2ch@4K/8ch@1080P decoding
  • HDMI/VGA simultaneous video output

Add to Enquiry List
System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 8/16/32 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution
HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
Decoding Capacity 2ch@4K 30fps, 8ch@1080P 30fps
Multi-screen Display
8CH: 1/4/8/9
16CH: 1/4/8/9/16
32CH: 1/4/8/9/16/25/36
OSD Camera title, Time, Camera lock, Motion detection, Recording
Recording
Compression H.265/ H.264
Resolution 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
Record Rate 200Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record:
1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18),
Video Loss and Tampering
Alarm input 4 Channel
Relay Output 2 Channel
Playback and Backup
Playback
8CH: 1/4/9
16/32CH: 1/4/9/16
Search Mode Time /Date, MD and Exact Search
(accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play,
Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Third Party Support
Third-party Support Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more
Network
Interface 1 RJ-45 Port (10/100/1000Mbps)
Ethernet Port 1 Independent 100Mbps Ethernet Port
PoE –
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, SDK, CGI
Storage
Internal HDD 2 SATA III Ports, Up to 6 TB capacity for each HDD
HDD Mode Single
Auxiliary Interface
USB 2 ports(1 USB2.0, 1 USB3.0)
RS232 –
RS485 –
Electrical
Power Supply DC12V/4A
Power Consumption < 6.9W(without HDD)
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions 1U, 375mm×281.5mm×56mm
(14.8″ x 11.1″ x2.2″)
Net Weight 1.6kg (3.5 lb) (without HDD)
Gross Weight 3.2kg(7.1 lb)(without HDD)
Certifications
CE EN55032, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
UL/td> UL60950-1
