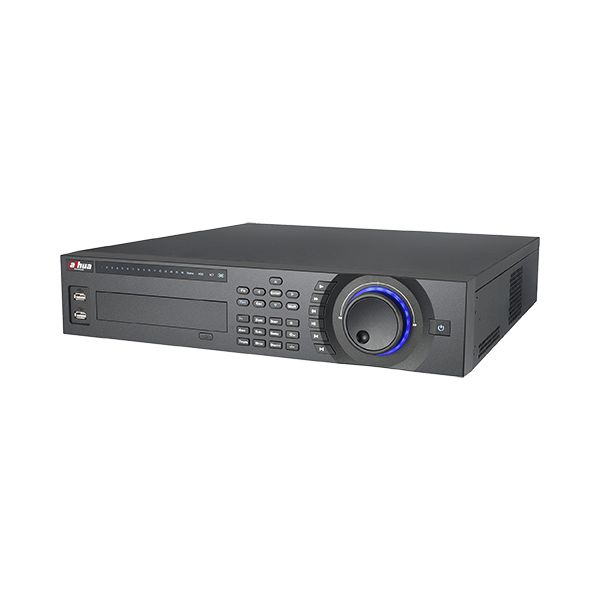

NVR4808/4816/4832

Categories: , ,

8/16/32 Channel 2U Lite Network Video Recorder

Features:

  • H.264+/H.264 codec decoding
  • Max 200Mbps Incoming Bandwidth
  • Up to 5MP Resolution for Preview and Playback
  • HDMI/VGA/TV simultaneous video output
  • Support ANR technology to enhance the storage reliability when the network break down

Add to Enquiry List
System
Main Processor Dual-Core embedded processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 8/16/32 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
Interface 1 HDMI, 1 VGA, 1TV
Resolution 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
Multi-screen Display 8CH: 1/4/8/9
16/32CH: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264+/H.264/MJPEG
Resolution 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
Record Rate 200Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Alarm, Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record:
1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18),
Video Loss and Camera Blank
Alarm input 16 Channel, Low Level Effective,
Green Terminal Interface
Relay Output 4 Channel, NO/NC Programmable,
Green Terminal Interface
Playback and Backup
Playback 8CH: 1/4/8
16/32CH: 1/4/8/16
Search Mode Play, Pause, Stop, Rewind, Fast play, Slow Play,
Next File, Previous File, Next Camera,
Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play,
Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode USB Device/Network/Internal SATA burner/
eSATA Device
Third Party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Network
Interface 2 RJ-45 Ports (10/100/1000Mbps)
Ethernet Port 2 Ethernet Ports Joint Working or
2 Independent 1000Mbps Ethernet Ports
PoE –
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,
Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant
Storage
Internal HDD 8 SATA III Ports, Up to 6 TB capacity for each HDD
HDD Mode Single
eSATA 1 eSATA Port
Auxiliary Interface
USB 3 USB Ports (2 USB 2.0 , 1 USB 3.0 )
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control
Electrical
Power Supply AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption <40W (Without HDD)
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions 2U, 440mm×468.7mm×95mm (17.3″ x 18.5″ x 3.7″)
Net Weight 6.55kg (14.4 lb) (without HDD)
Gross Weight 9.5kg(20.94 lb)(without HDD)
Certifications
CE EN55022, EN55024, EN50130-4, EN60950-1
FCC  15 Subpart B, ANSI C63.4-2014
UL/td> UL60950-1+CAN/CSA C22.2 No.60950-1
