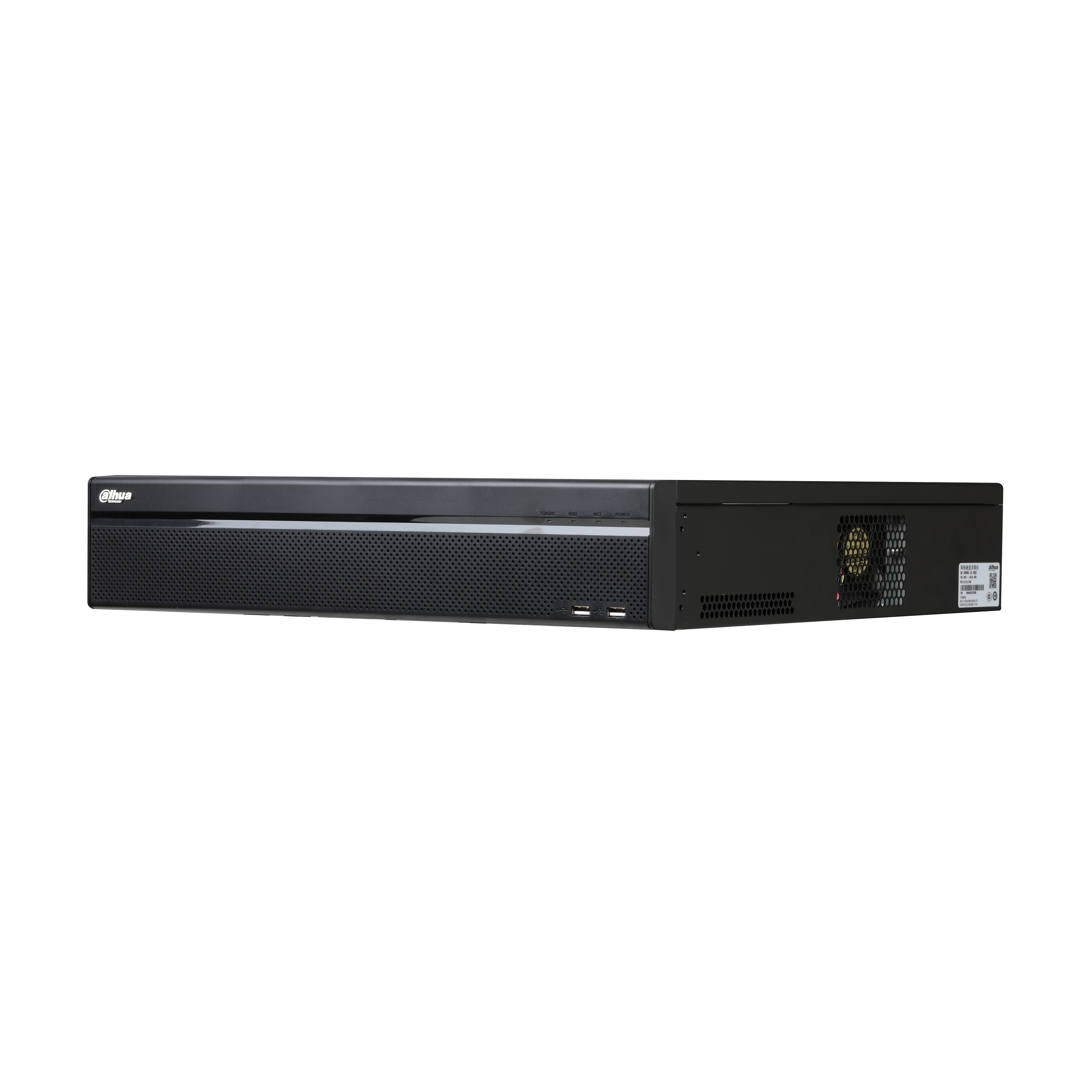

NVR5816/5832/5864-4KS2

Categories: , ,

16/32/64 Channel 2U 4K&H.265 Pro Network Video Recorder (V2.00)

Features:

  • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
  • Max 320Mbps Incoming Bandwidth
  • Up to 12MP Resolution for Preview and Playback
  • 2HDMI/2VGA simultaneous video output

Add to Enquiry List
System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 16/32/64 Channel
Two-way Talk 1 Channel Input, 2 Channel Output, RCA
Display
Interface 2 HDMI, 2 VGA
Resolution HDMI 1: 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
VGA1: 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
HDMI2/VGA2: 1920 × 1080
Decoding Capability 4-ch@8MP(30fps), 16-ch@1080P(30fps)
Multi-screen Display 1st Screen: 16CH: 1/4/8/9/16
32CH: 1/4/8/9/16/25/36
64CH: 1/4/8/9/16/25/36/64
2nd Screen: 1/4/8/9/16
OSD Camera title, Time, Camera lock, Motion detection, Recording
Recording
Compression Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input 16 Channel
Relay Output 6 Channel
Playback and Backup
Sync Playback 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode USB Device/Network/eSATA Device
Third-party Support
Third-party Support Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more
Network
Interface 2 RJ-45 Ports (10/100/1000Mbps)
Independent or Joint Working
PoE N/A
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, SDK, CGI
Storage
Internal HDD 8 SATA III Ports, Up to 10 TB capacity for each HDD
eSATA 1 eSATA
Auxiliary Interface
Power Supply 4 USB Ports (2 Rear USB 3.0 , 2 Front USB 2.0 )
Power Consumption 1 Port, for PC Communication and Keyboard
Fan 1 Port, for PTZ Control
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions 2U, 440mm x 451.5mm x 94.9mm ;
(17.3″ x 17.7″ x 3.7″)
Net Weight 6.55kg (14.4 lb) (without HDD)
Gross Weight 9.5kg (20.94 lb) (without HDD)
Installation Rack-mounted
Certifications
CE EN55022, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
UL UL 60950-1

ESS1504C

4 HDDs eSATA Storage
