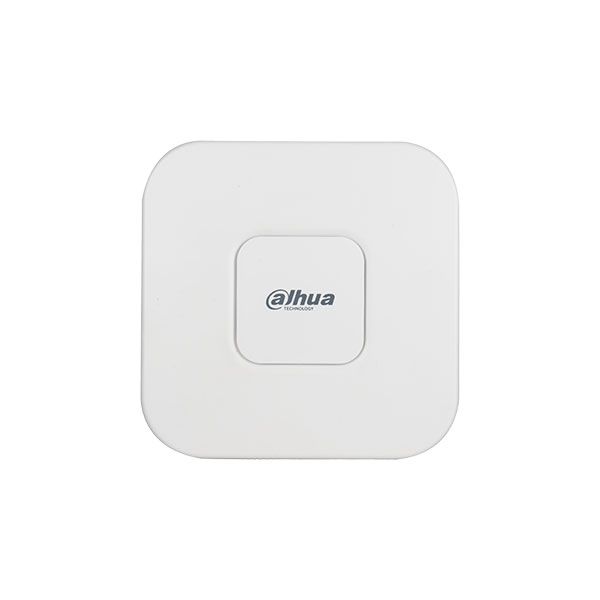

PFM889-I

Category:

Indoor 5G Wireless video transmission device (AP)

Features:

  • The best coverage: 0-150m(open)
  • PoE power supply, which supports international standard 802.3at and lets power supply be convenient and reliable
  • Support Web page and AC remote operations management and make the installation and maintenance be more convenient
  • Support SNMP v1/v2c/v3 network management protocol, adapt to all kinds of general network management platform, and make the equipment management be more convenient
  • Support device auto reboot function
  • Support double firmware redundancy backup and make the maintenance operation be more safe and reliable
  • Use the wireless multimedia optimization shaping technology, which ensures the stability of the video and flow transmission
Add to Enquiry List
Model DH-PFM889-I DH-PFM889-IM
Wireless Features
Wireless Standard IEEE802.11 b/g/n IEEE802.11 a/n/ac
IEEE802.11 b/g/n
Working Frequency 2412~2472MHz(extended range: 2312~2732MHz) 5G: 5745~5825MHz(extended range: 4920~6100MHz)
2.4G: 2412~2472MHz(extended range: 2312~2732MHz)
Wireless Speed 300Mbps 2.4G: 300Mbps
5G: 867Mbps
Modulation Mode OFDM
Antenna Internal antenna: gain 3dBi Internal 2.4G antenna: gain 3dBi
Internal 5G antenna: gain 3dBi
Output Power 27dBm
Receiving Sensitivity 11b: -97dBm@ 1Mbps;
11g: -94dBm@6Mbps;
11n: -72dBm@MCS7		 11b: -93dBm@ 1Mbps;
11g: -92dBm@6Mbps;
11a: -91dBm@6Mbps;
11n: -74dBm@MCS7
11ac: -67dBm@MCS9
Transmission Distance 150m
Wireless Direction Angle Omni-directional
Hardware
Power 1*PoE RJ45(IN: 220V, OUT: 48V/0.5A), DC 12V 1*PoE RJ45(IN: 220V, OUT: 48V/0.5A), DC 48V
Power Consumption Max. 8W Max. 20W
Ethernet Port 1*LAN RJ45(Gigabit)
Working Temperature -30℃~+60℃
Storage Temperature -40℃~+80℃
Working Humidity 5%~95%RH( no condensation)
Equipment Dimension 150mm×150mm×42mm
Equipment Weight 0.5Kg
Protection Level IP41
Software
Encryption Type WPA-PSK/WPA2/CCMP(AES)/TKIP
Network Mode Route/Network Bridge
Working Mode Access Point/Client/WDS AP/WDS client
Security Mechanism IP/MAC address filtering, hide network name and etc.
Network Protocol TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP
TDMA Enhancement Support(TDMA eliminate hidden nodes influence and greatly improve one-to-many performance)
Auto ACK Timing Adjustment Support(Auto optimize parameter within long-distance communication and make the performance optimal)
Management and Log NTP, Syslog, Telnet, AC, SNMP
Webpage Configuration Management Support webpage configuration, AC remote management and SNMP management
Firmware Update Support Firmware webpage update and AC remote upgrade
Bandwidth Flexible Configuration 20/40MHz 20/40/80MHz
