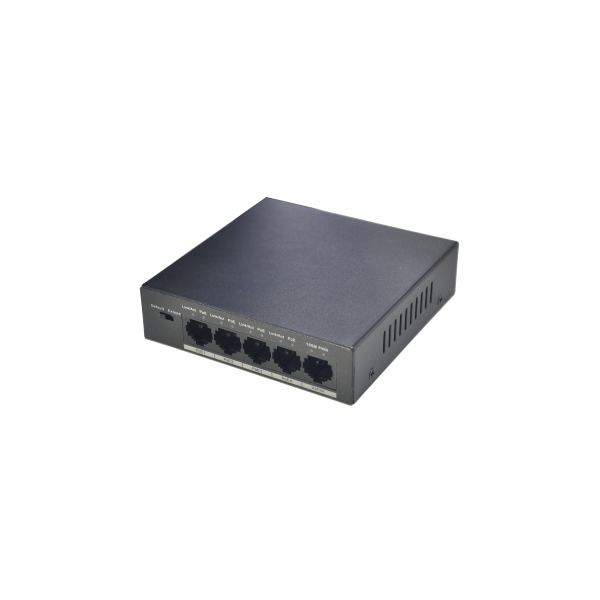

PFS3005-4P-58

Category:

4-Port PoE Switch (Unmanaged)

Features:

  • Two-layer PoE Ethernet switch
  • MAC auto study and aging, MAC address list capacity is 1K
  • Conform IEEE802.3, IEEE802.3u and IEEE802.3X standards
  • Extend Mode: VLAN isolation is enabled. Ports 1-4 will be isolated respectively (10Mbps auto-negotiation), but they can communicate with the Uplink port. Besides, the transmission distance of power and network data is up to 250m.
Add to Enquiry List
Technical Specification
Model DH-PFS3005-4P-58
Ethernet Port 1*10/100 Base-T

4*10/100 Base-T (PoE power supply)
PoE Power Consumption Each power ≤30W, Total≤58W
PoE Protocol IEEE802.3af, IEEE802.3at
Switching Capacity 1Gbps
Packet Forwarding Rate 744Kpps
Packet Buffer Memory 448Kb
MAC Table Size 1K
Flow Control Enable
Application Humidity 10%~90%
Power Default DC51V/1.25A power adapter
Lightning Protection Common Mode 2KV

Differential Mode 1KV
Working Temperature -10°C~50°C
Weight 259g
Dimension(W×D×H) 100mm×100mm×26mm
Not available.
Type Download
Datasheet
Not available.
