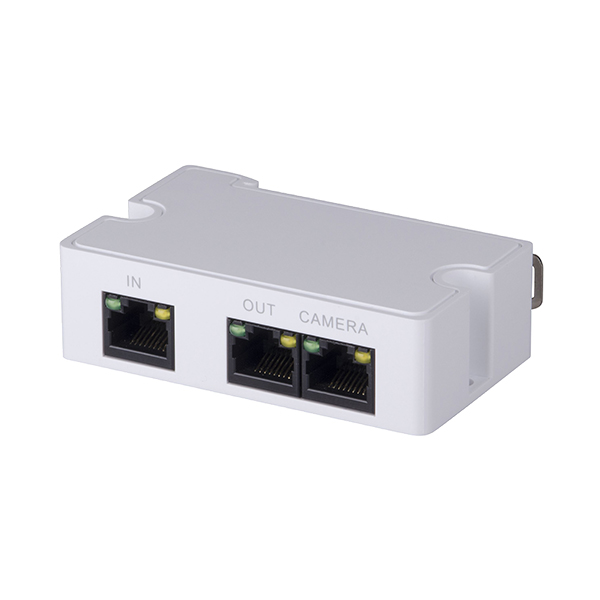

PFT1300

Categories: , ,

PoE Extender

Features:

  • Support passive PoE cascade power supply and Ethernet data exchange
  •  Support IEEE 802.3af/at standard power supply IP Camera
  • Cooperate with High PoE Midspan (PFT1200), able to cascade level 2 PoE Extender, connect to 3 IPC (power consumption <=8W), max transmission distance 300m
  • 1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam; 1*RJ45 10/100M supply power for the next extender
  • Installation mode: junction box internal mounting, DIN rail mounting
Add to Enquiry List
Techical Specification
Model PFT1300
Ethernet Port 1*10/100/1000 Base-T
1*10/100/1000 Base-T( PoE power supply)
Transmission Distance Cooperate with DH-PFT1200, able to cascade level two extender, connect to 3 IPC (level one extender connects to 1 IPC, the OUT port of level two extender and CAMERA port connect to 1 IPC respectively, IPC power consumption <=8W), transmission distance is 300m
Power Consumption <=3W
Application Humidity 10%~90%
Working Temperature ﹣30°C~65°C
Weight 57g
Dimension(W×D×H) 79mm×52mm×23mm
Not available.
Type Download
Datasheet
User Manual
Not available.
