| Model |
AP130(L)
|
| Target Deployments | |
| Target Deployments | For wireless deployment in hotels, offices, residential buildings |
| Basic Specifications | |
| Radio | Concurrent dual-radio dual-band |
| Protocol | 802.11a/b/g/n/ac |
| Operating Bands | 2.4GHz and 5GHz |
| Antenna | Built-in omnidirectional antenna (Base gain 3.5dBi) 2×2 MIMO |
| Max Throughput | 1.167Gbps |
| Spatial Streams | 2 |
| IP Rating | IP41 |
| Ports | |

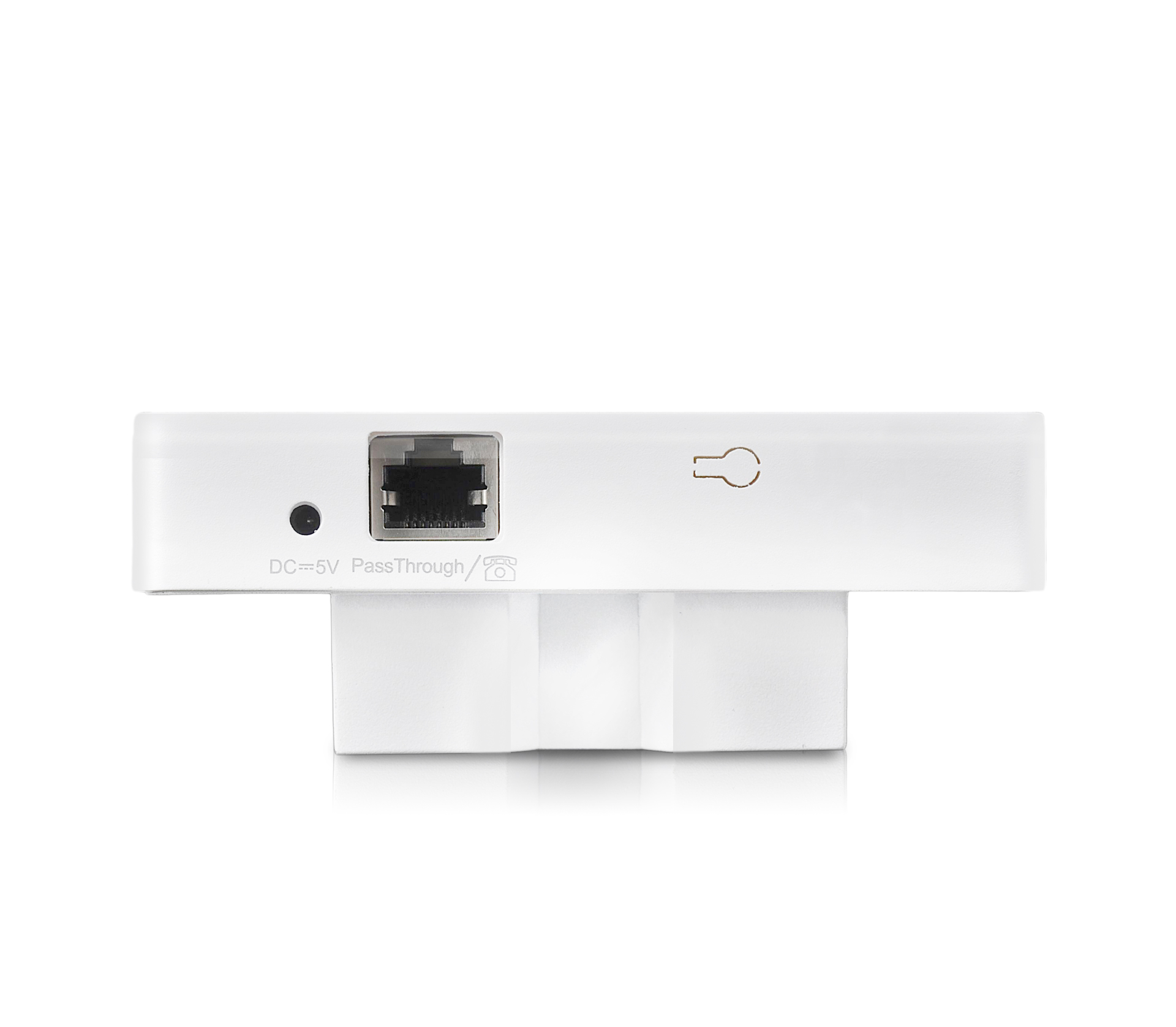

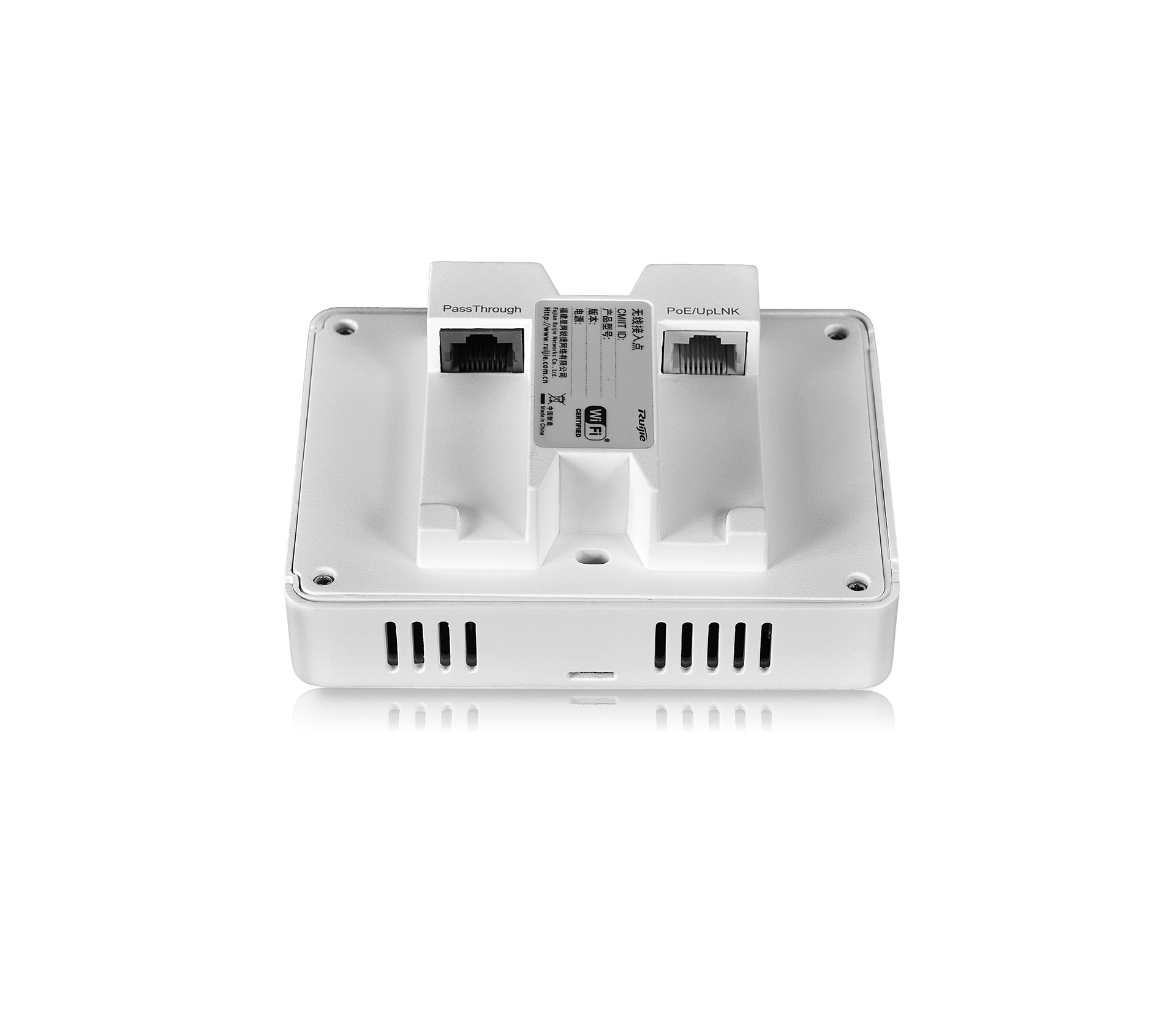

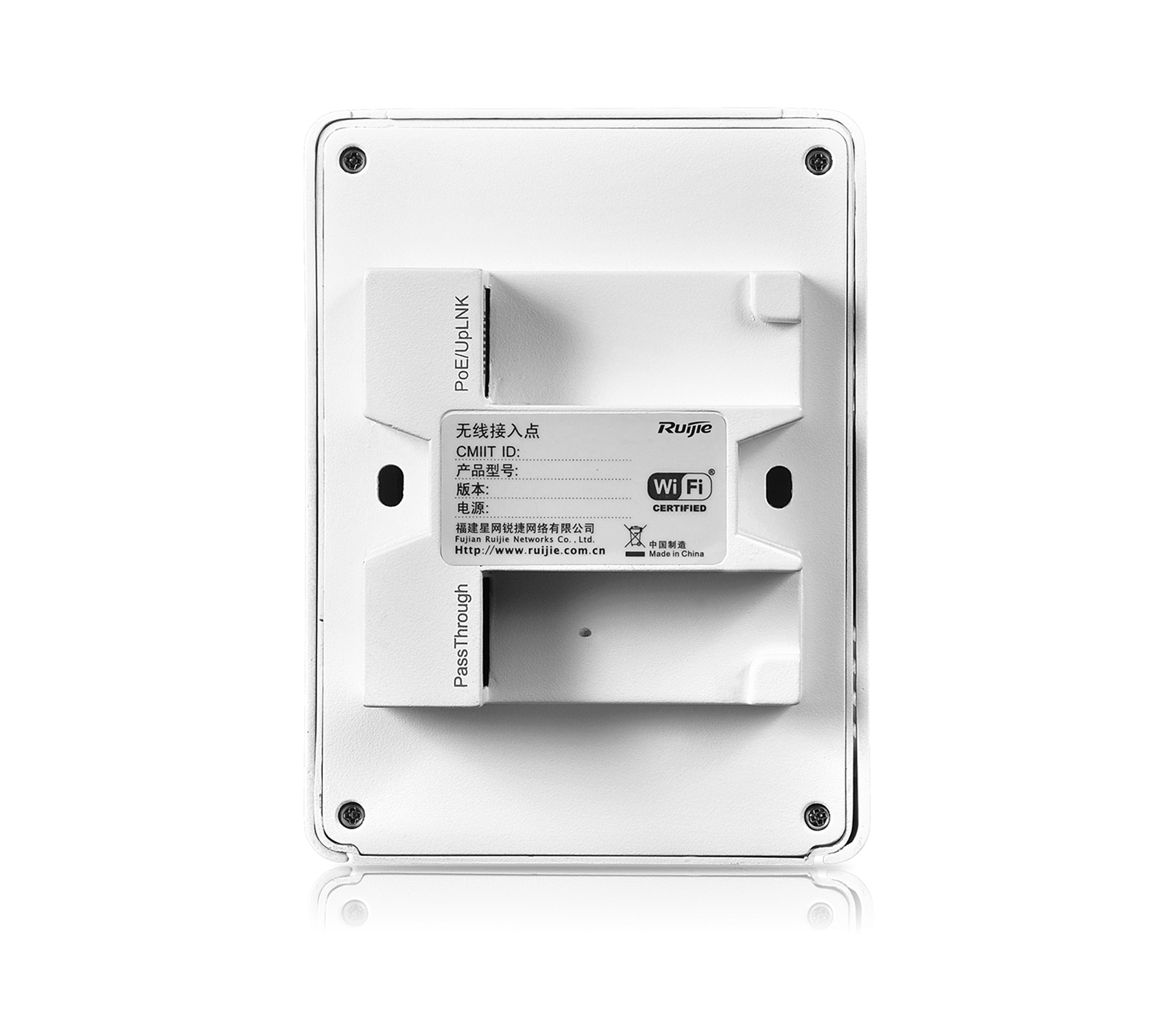

| Service Ports | Front: 4 10/100M Ethernet ports Side: 1 RJ-45 pass-through port (RJ-11 combo) Rear: 1 10/100/1000M uplink port 1 RJ-45 pass-through port (RJ-11 combo) |
| Power | |
| Power Supply | PoE (802.3af) |
| Power Consumption | <8W |
| WLAN | |
| Maximum clients per AP | 32 |
| BSSID capacity | 16 |
| SSID hiding | Support |
| Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID | Support |
| Remote Intelligent Perception Technology (RIPT) | Support |
| Intelligent load balancing based on the number of users or traffic | Support |
| STA control | SSID/radio-based |
| Bandwidth control | STA/SSID/AP-based speed control |
| Band Steering (5G Priority) | Support |
| Dynamic Frequency Selection(DFS) | Future release support |
| Security | |
| PSK authentication | Support |
| Web portal authentication (by Ruijie Cloud integration) | Support |
| 802.1x authentication | Support |
| Data encryption | WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) |
| PEAP authentication | Support |
| Data frame filtering | Whitelist, static/dynamic blacklist |
| User isolation | Support |
| Rogue AP detection and countermeasure | Support |
| Standard & Extended IP & MAC ACL | Support |
| RADIUS | Support |
| CPU Protection Policy (CPP) | Support |
| Wireless Intrusion Detection System(WIDS) | Support |
| IPv4 address | Static IP address or DHCP reservation |
| Management and Maintenance | |
| Network management | SNMP v1/v2C/v3, Telnet, TFTP, FTP and Web management |
| Fault detection and alarm | Support |
| Cloud AC management | Support |
| Statistics and logs | Support |
| External Characteristics | |
| Lock | Standard: Anti-theft screws and ordinary screws Optional: Lock and key |
| LED Indicators | 1 LED status indicator |
| Relevant Standard | |
| Wi-Fi Alliance Certification | Support |
| Safety Standard | GB4943, EN/IEC 60950-1 |
| EMC Standard | GB9254, EN301 489 |
| Health Standard | EN 62311 |
| Radio Standard | EN300 328, EN301 893 |
| Vibration Standard | IEC60068－2-31, ETSI EN300 019, NEBS GR-63-CORE |
| Specifications | |
| Dimensions (W x D x H) (mm) | 116 × 86 × 42 |
| Weight | 0.23kg |
| Work Environment | |
| Temperature | Operating Temperature: -10°C to 45°C Storage Temperature: -40°C to 70°C |
| Humidity | Operating Humidity: 10% to 95% (non-condensing) Storage Humidity: 5% to 95% (non-condensing) |
| Installation Mode | |
| Installation Mode | Standard 86-type faceplate installation |
AP130(L)

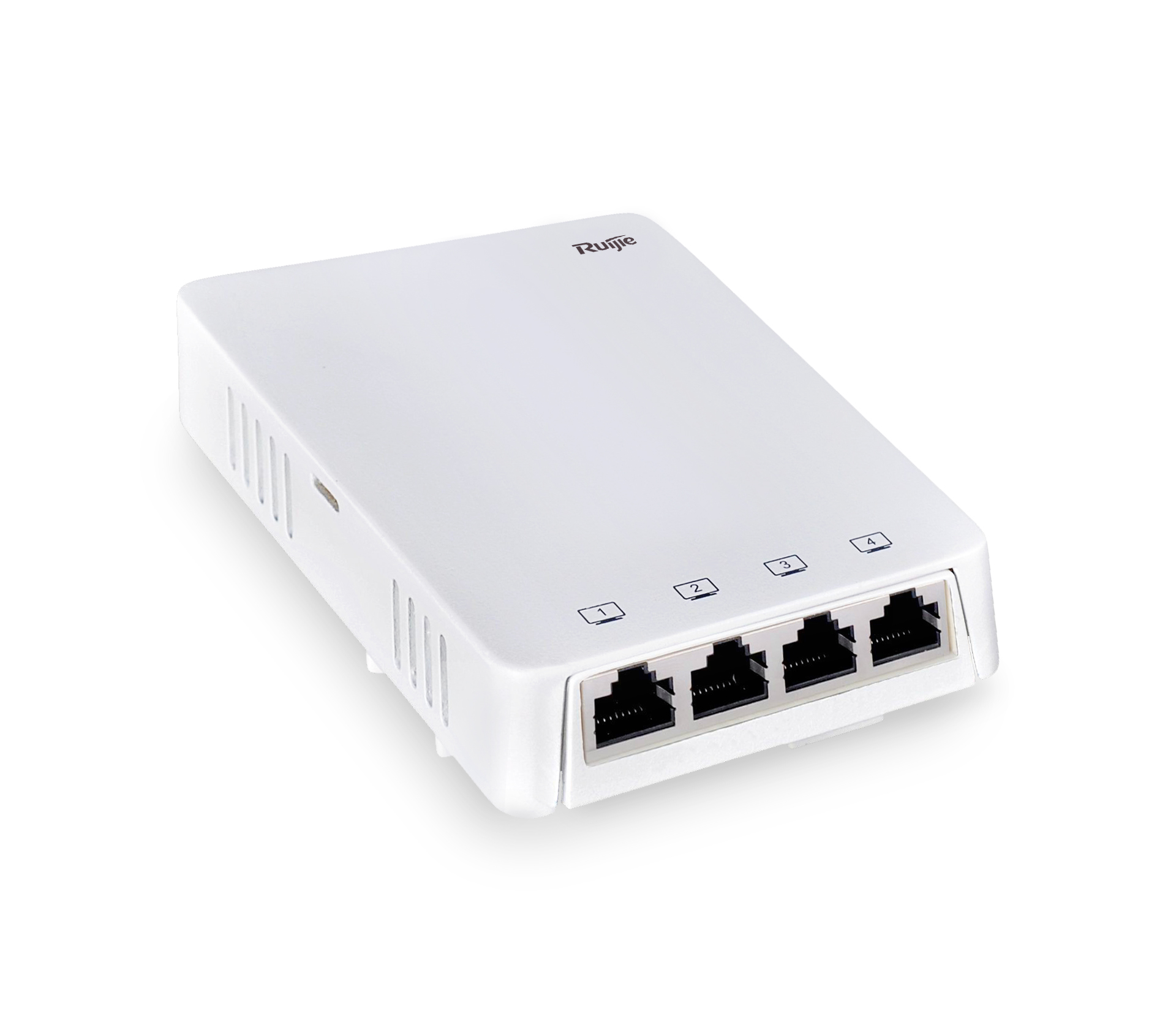

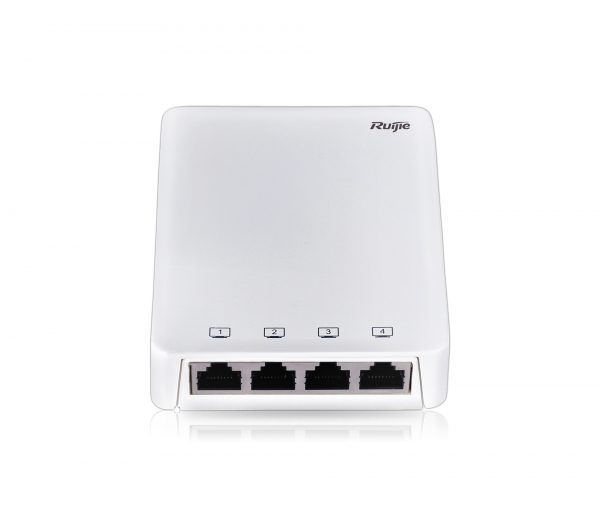

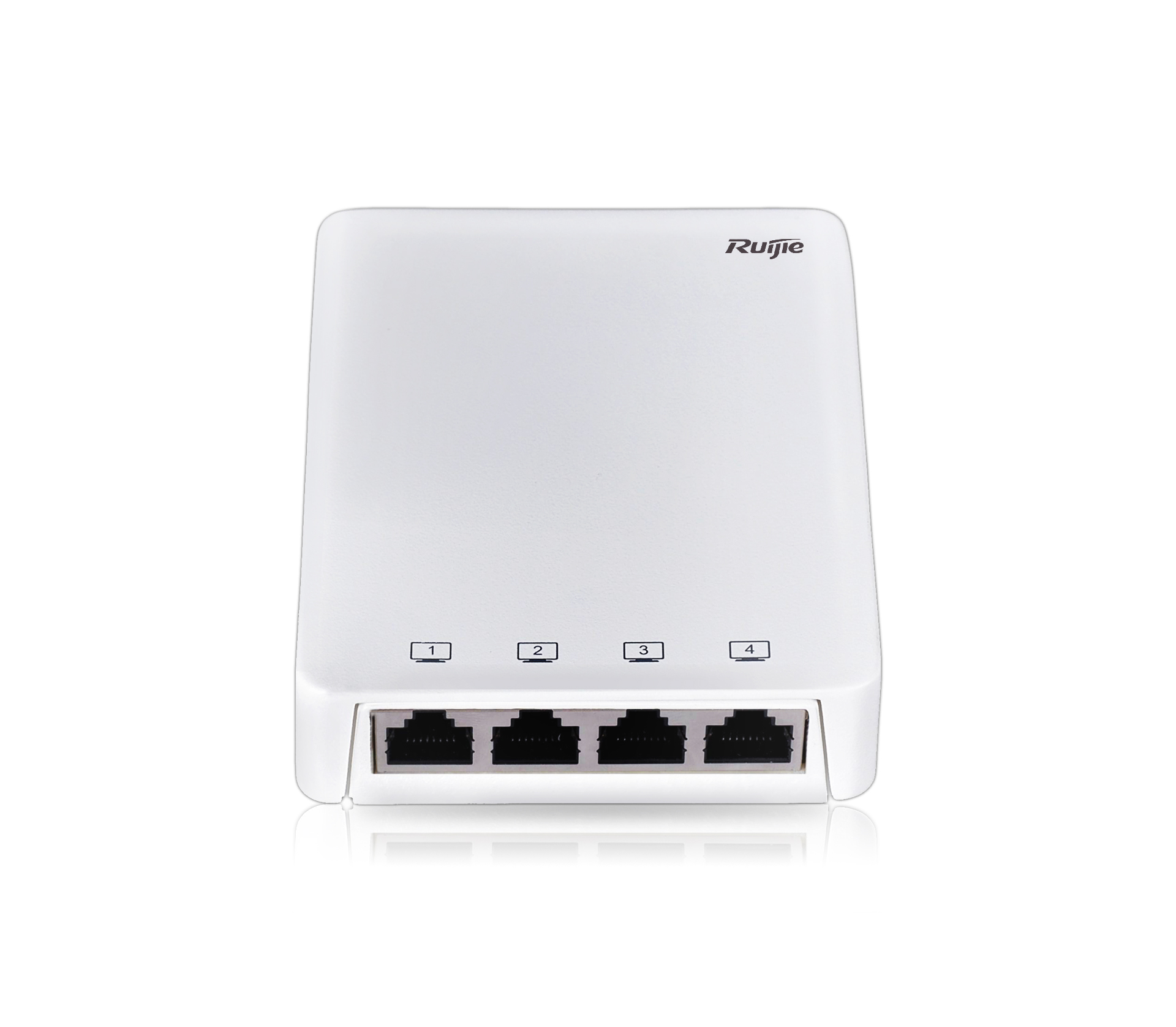

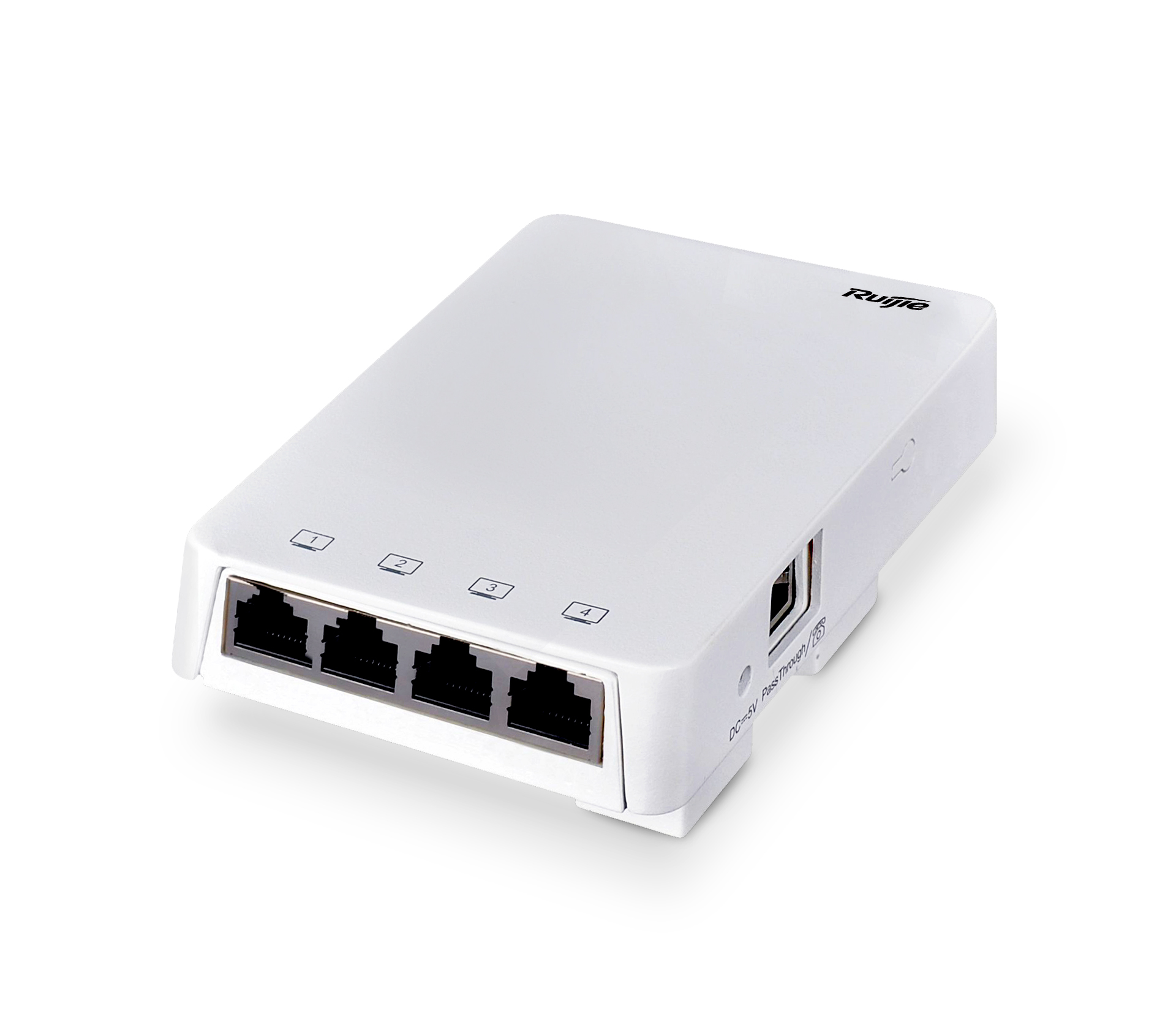

RUIJIE Wireless AP Indoor 802.11ac Wall Socket Access Point, Dual-Band
3 Years Warranty c/w Lifetime Free Ruijie Cloud

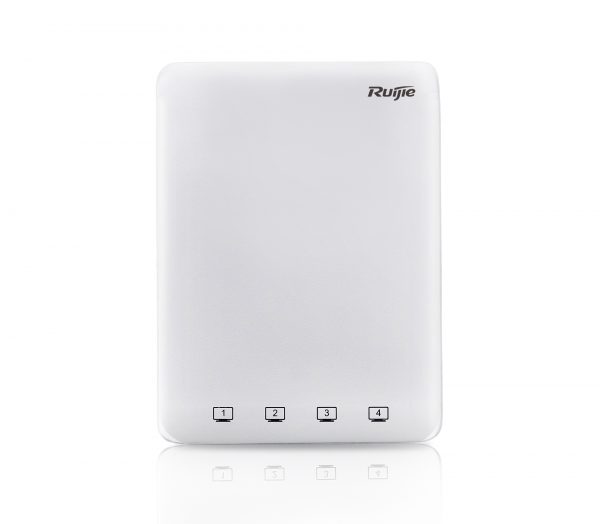

Replaceable Plate Design
Unique design for offers a collection of colorful covers to accommodate various interior design styles. You can select the best fit from gold, white, black and silver.
Comfort Guest Experience
Have you ever been disturbed by the ‘lights’ from in-room equipment during rest? Ruijie AP130(L) will unique replaceable cover plate design allowing all status LED are fully covered by the plate
Service Expansion

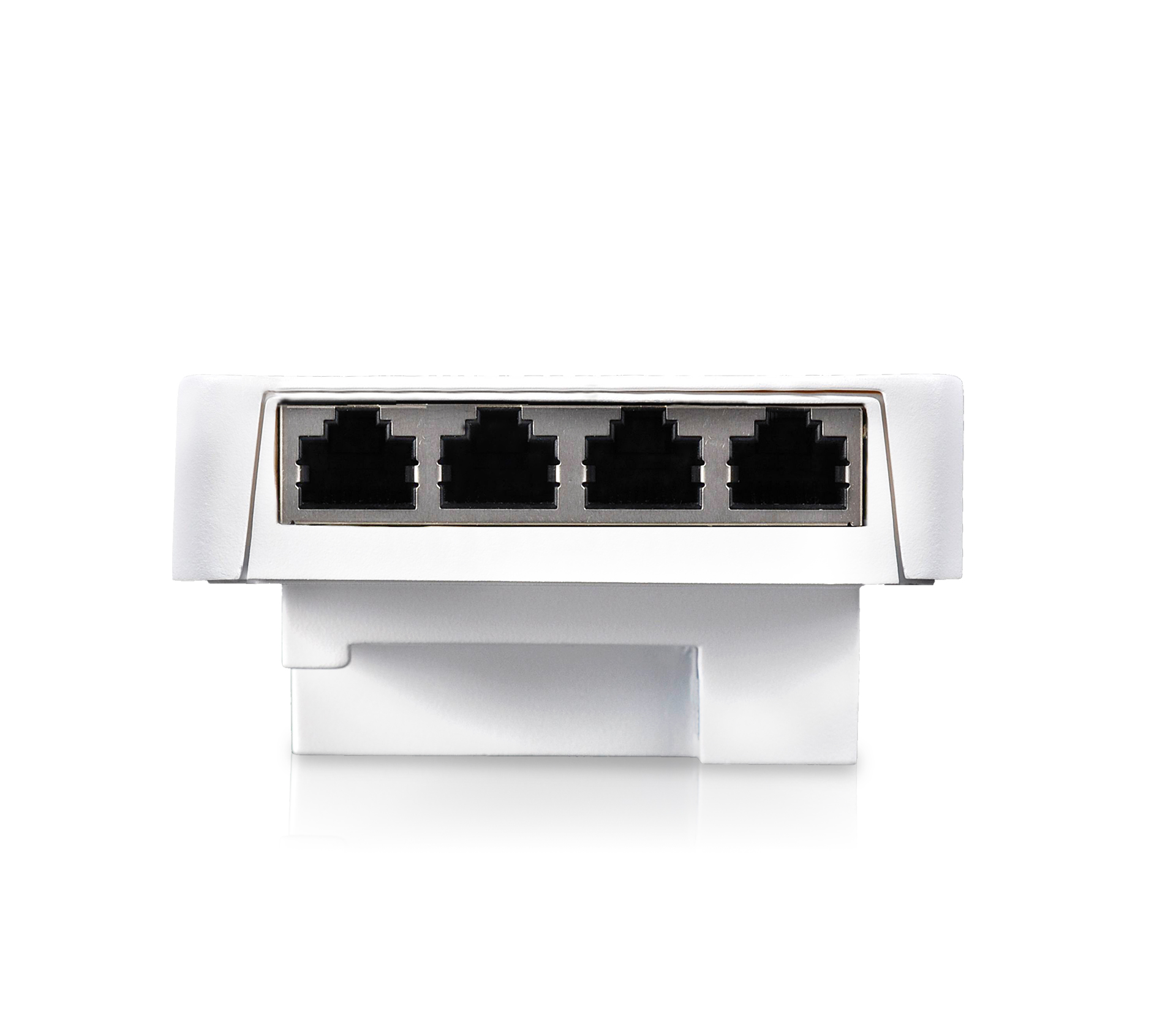

The AP130(L) came with 4 Data LAN Ports for in-room network equipment (e.g. IPTV, IoT Terminals, IP Phone) and guest wired Internet connection use.
Flexible Hybrid Management
3 different management modes for selection, perfect for your ever changing business needs
