SD49225T-HN

Categories: ,

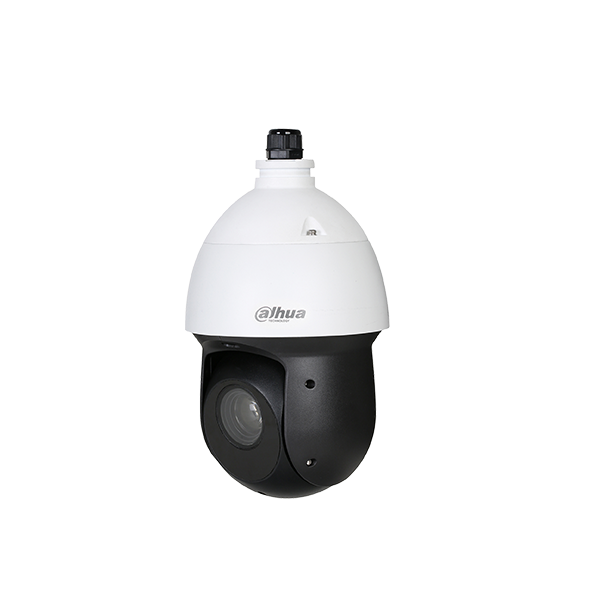

2MP 25x Starlight IR PTZ Network Camera

Features:

  • 1/2.8” 2Megapixel STARVIS™ CMOS
  • Powerful 25x optical zoom
  • Starlight technology
  • 1080P/720P/D1(1 ~ 25/30fps)
  • IVS
  • Support PoE+
  • IR distance up to 100m
  • IP66

Add to Enquiry List
Camera
Image Sensor 1/2.8” STARVIS™ CMOS
Effective Pixels 1920(H) x 1080(V), 2 Megapixels
RAM/ROM 1024M/128M
Scanning System Progressive
Electronic Shutter Speed 1/1s~1/30,000s
Minimum Illumination Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 100m (328ft)
IR On/Off Control Auto/Manual
IR LEDs 6
Lens
Focal Length 4.8mm~120mm
Max. Aperture F1.6 ~ F4.4
Angle of View H: 59.2° ~ 2.4°
Optical Zoom 25x
Focus Control Auto/Manual
Close Focus Distance 100mm~ 1000mm
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Detect Observe Recognize Identify
1613m(5292ft) 646m(2119ft) 323m(1060ft) 161m(528ft)
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control Speed Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 240° /s; Tilt: 200° /s
Presets 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup Human-oriented focal Length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol DH-SD
Intelligence
Auto Tracking N/A
IVS Tripwire, Intrusion,Abandoned/Missing, Face Detection
Video
Compression H.265/H.264 / MJPEG
Streaming Capability 3 Streams
Resolution 1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main stream 1080P/720P/D1(1 ~ 25/30fps)
Sub stream1 D1/CIF(1 ~ 25/30fps)
Sub stream2 1080P/720P/D1/ CIF (1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto,ATW,Indoor,Outdoor,Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Motion Detetion Support
Region of Interest Support
Electronic Image

Stabilization (EIS)

 N/A
Defog Support
Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas
Audio
Compression G.711a/G.711u(32kbps)/PCM(128kbps)
Network
Ethernet RJ-45 (10Base-T/100Base-TX)
Protocol IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 20 users
Edge Storage NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS
Smart Phone IOS, Android
Certifications
Certifications CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
Video Interface N/A
Audio Interface 1/1
RS485 N/A
Alarm 2/1
Electrical
Power Supply DC 12V/3A, PoE+(802.3at)
Power Consumption 13W,20W (IR on)
Environmental
Operating Conditions -40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance N/A
Construction
Casing Metal
Dimensions Φ160(mm) x 295(mm)
Net Weight 3kg(6.61lb)
Gross Weight 4.2kg(9.26lb)
