UHF2-10F(B)

Categories: ,

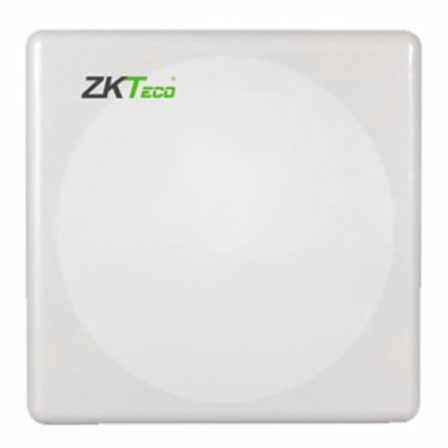

Long Distance Wiegand Reader

Features:

  • Read range up to 12 meters (adjustable)
  • Read sensitivity: line polarization read mode
  • Wiegand 26-Bit (can change to 34-Bit via software)
  • Two working mode: Trigger read & always read (Default)
  • Comes with the mounting plate
  • Weatherproof (IP66)
  • Maximum cable distance: 100m
  • Multiple label recognition
  • Wide application: Vehicle management, personnel management and goods management
Add to Enquiry List
Specifications
Dimension 445 * 445 * 70mm
Reading Distance Up to 12 meters (adjustable)
Communication Interface Wiegand 26(Default)/ Wiegand 34, USB
Frequency 902Mhz – 928Mhz
Shell Material Antenna Panel: ABS Engineering Plastics; Back Cover; Aluminium Shell
Working Voltage 9 ~ 12V DC
Working Current 150mA (Always read)
Working Temperature -20°C – 60°C
Interface Protocol EPC global UHF Class 1Gen 2/ISO 18000-6c
Multiple Tags Identification <100
Working Mode Always read (Default)/ Trigger read
I/O Interface Supports external trigger
Maximum Power Consumption <3W (RF output 26dBm, multiple tags), <2W (RF output 26dBm, single tags)
