UT-2201

SKU: UT-2201 Categories: , Tag:

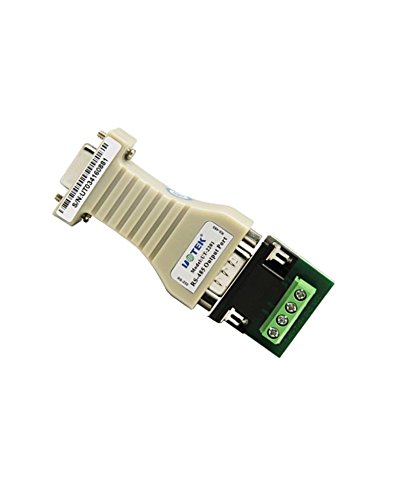

RS232 to RS485 Converter

Features:

  • Interface feature: RS-232C,RS-485standard interface
  • Compatible with EIA,TIA
  • Electric interface: RS-232endDB9holeconnector, RS-485 end
  • DB9 needle connector, with connection pole
  • Working mode: asynchronism half-duplex difference transmission
  • Transmission media: twisted -pair or STP
  • Transmission rate: 300-115.2KBPS
  • External discharge dimension: 63mm X33mmX17mm
  • Working circumstance:- 25 t o 70 degree C, relative humidity5% to 95%
  • Transmission distance: 1,200m(RS-485 end), 5m(RS-232 end)
Add to Enquiry List
UT-2201 RS232 to RS485 Converter
Specifications
Interface Feature RS-232C, RS-485 standard interface compatible with EIA, TIA
Electric Interface RS-232 end DB9 hole connector, RS-485 end, DB9 needle connector, with connection pole
Working Mode Asynchronism half-duplex difference transmission
Transmission Media Twisted pair or STP
Transmission Rate 300 – 115.2KBPS
External Discharge Dimension 63 mm x 33 mm x 17 mm
Working Circumstance -25°C to 70°C, relative humidity 5% to 95%
Transmission Distance 1,200m (RS-485 end), 5m (RS-232 end)





Not available.
Not available.
Not available.
