Product Model |
XS-S1920-9GT1SFP-P-E |
XS-S1920-26GT2SFP-P-E |
XS-S1920-26GT2SFP-LP-E |
XS-S1920-24T2GT2SFP-P-E |
XS-S1920-24T2GT2SFP-LP-E |
|
|
Product Grade |
Layer 2 Smart Managed |
|||||
|
Ports |
10/100BASE-T |
n/a |
n/a |
n/a |
24 |
24 |
|
10/100/1000BASE-T |
9 |
26 |
26 |
2 |
2 |
|
|
1000M SFP |
1 |
2 |
2 |
2 |
2 |
|
|
Power over Ethernet |
PoE/PoE+ Enabled Ports |
8 |
24 |
24 |
24 |
24 |
|
IEEE802.3af (PoE) |
✓ |
✓ |
✓ |
✓ |
✓ |
|
|
IEEE802.3at (PoE+) |
✓ |
✓ |
✓ |
✓ |
✓ |
|
|
PoE Power Budget |
125W |
370W |
185W |
370W |
185W |
|
|
Physical |
Packet Buffer |
4.1Mbit |
4.1Mbit |
4.1Mbit |
4.1Mbit |
4.1Mbit |
|
CPU Memory |
256MB |
256MB |
256MB |
256MB |
256MB |
|
|
Flash |
32MB |
32MB |
32MB |
32MB |
32MB |
|
|
Dimensions(WxDxH) |
300x220x43.6mm |
440x292x43.6mm |
440x292x43.6mm |
440x292x43.6mm |
440x292x43.6mm |
|
|
Unit Weight |
2kg |
4.2kg |
4.2kg |
4.2kg |
4.2kg |
|
|
Power Supply |
Type |
Internal |
Internal |
Internal |
Internal |
Internal |
|
Frequency |
50/60Hz |
|||||
|
AC Voltage |
100~240V |
|||||
|
Maximum Power Rating |
145W |
430W |
226W |
424W |
215W |
|
|
Cooling |
Fanless |
Fan |
Fan |
Fan |
Fan |
|
|
Certifications |
Safety |
EN 60960-1 |
||||
|
Emissions |
EN 55022, EN55032 |
|||||
|
Immunity Generic |
EN 55024 |
|||||
|
ESD |
EN 61000-4-2 |
|||||
|
Radiated |
EN 61000-4-3 |
|||||
|
EFT/Burst |
EN 61000-4-4 |
|||||
|
Surge |
EN 61000-4-5 |
|||||
|
Conducted |
EN 61000-4-6 |
|||||
|
Power frequency magnetic field |
EN 61000-4-8 |
|||||
|
Voltage dips and interruptions |
EN 61000-4-11 |
|||||
|
Harmonics |
EN 61000-3-2 |
|||||
|
Flicker |
EN 61000-3-3 |
|||||
|
RoHS |
✓ |
✓ |
✓ |
✓ |
✓ |
|
|
EEE |
✓ |
✓ |
✓ |
✓ |
✓ |
|
|
Operating Temperature |
-5 ℃ ~ 55 ℃ |
|||||
|
Storage Temperature |
-40 ℃ ~ 70 ℃ |
|||||
|
Opertaing Humidity |
10%~90% RH |
|||||
|
Storage Humidity |
5%~95% RH |
|||||
|
Operating Altitude |
-50m ~ 5000m |
|||||
|
Warranty |
3-Year Warranty Free of Charge |
|||||
|
Package Contents |
Ruijie XS-S1920-E Series Switch |
|||||
|
Performance |
Switching Capacity |
20Gbps |
56Gbps |
56Gbps |
12.8Gbps |
12.8Gbps |
|
Forwarding Rate |
15Mpps |
42Mpps |
42Mpps |
9.6Mpps |
9.6Mpps |
|
|
L2 Switching |
MAC Table Size |
8K |
8K |
8K |
8K |
8K |
|
STP |
✓ |
|||||
|
RSTP |
✓ |
|||||
|
MSTP |
✓(63 instances) |
|||||
|
Port Grouping |
LACP |
|||||
|
VLAN |
IEEE802.1Q |
|||||
|
GVRP |
✓ |
|||||
|
IGMP Snooping |
✓(v1/v2/v3) |
|||||
|
Jumbo Frame |
9KB |
|||||
|
G.8032/ERPS |
n/a |
|||||
|
L3 |
IPv4 Routing |
✓ (Static/RIP in future release) |
||||
|
IPv6 Routing |
✓ (Static/RIPng in future release) |
|||||
|
DHCP Server |
n/a |
|||||
|
DHCP Relay |
✓ |
|||||
|
Security |
CPP |
✓ |
||||
|
NFPP |
n/a |
|||||
|
SSH |
✓(SSH in future release) |
|||||
|
SSL |
✓(SSL in future release) |
|||||
|
IEEE802.1X |
n/a |
|||||
|
Port Security |
n/a |
|||||
|
Radius |
n/a |
|||||
|
ACL |
n/a |
|||||
|
QoS |
Priority Levels |
n/a |
||||
|
Scheduling |
n/a |
|||||
|
Class of Service |
n/a |
|||||
|
Rate Limit |
n/a |
|||||
|
Management |
Web User Interface |
✓ |
||||
|
HTTP/HTTPS |
✓(HTTPS in future release) |
|||||
|
Ruijie Cloud Management |
✓ |
|||||
|
RG-SNC Management |
✓ |
|||||
|
Command Line Interface |
✓(Telnet/Console) |
|||||
|
SNMP |
✓ |
|||||
|
SYSLOG |
✓ |
|||||
|
NTP |
✓(NTP Client) |
|||||
|
Public MIBs |
✓ |
|||||
|
Private MIBs |
✓ |
|||||
|
RMON |
✓(1/2/3/9) |
|||||
|
Firmware Upgrade |
✓ |
|||||
|
Port Mirroring |
✓ |
|||||

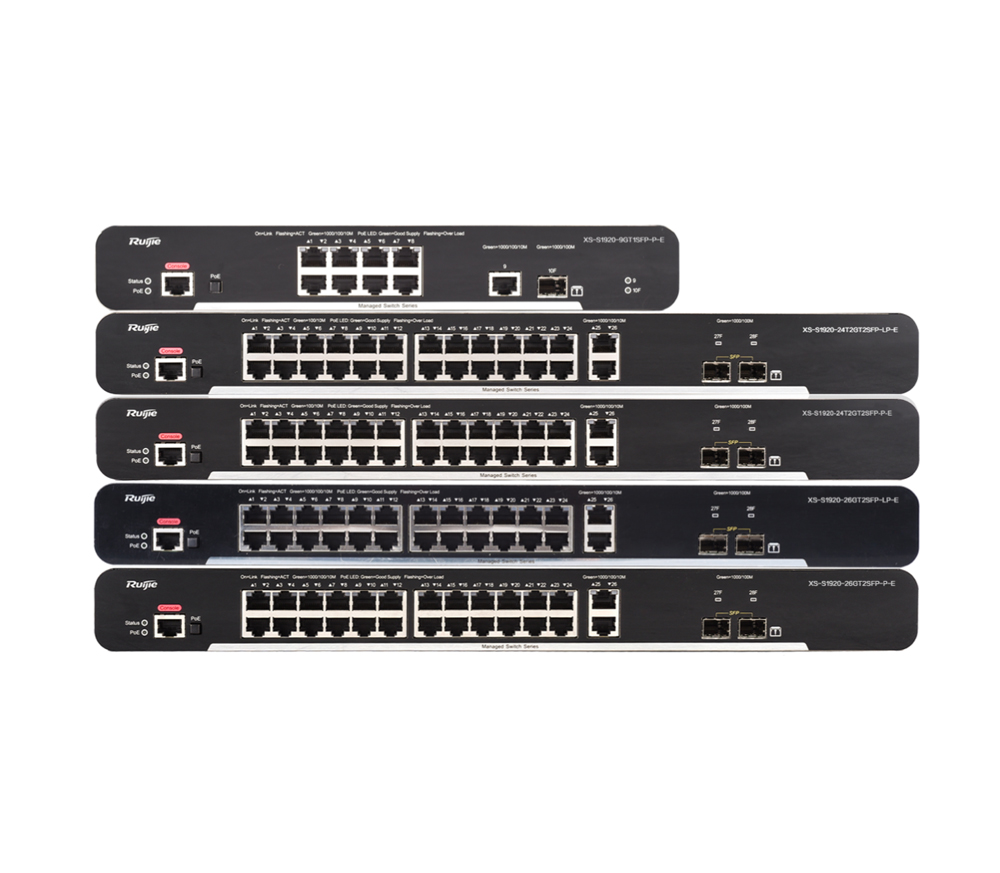

XS-S1920 Switch Series
Easy Management
●Ruijie Cloud
The XS-S1920-E Series fully supports Ruijie Cloud, which is a cloud-based service that helps user deploy and manage devices and networks.
●Built-in Web management
Even non-technical users can do easy management for the network through a Web browser and XS-S1920-E’s Web-UI.
●Command Line Interface
With RGOS’s full command line support, complex configuration and troubleshooting can be done as well.
●SNMP v1/v2c/v3
Switches can be discovered and monitored from NMS system or other SNMP-based network tools.
●Network Time Protocol
Enables synchronization of time among time servers and clients, fulfill the need for clock-dependent devices in the network.
High Performance
●IGMP Snooping v1/v2/v3
Instead of flooding traffic to all ports, the switch filters multicast traffic to improve network performance, especially useful for IPTV and CCTV deployment.
●VLAN support and tagging
Supports IEEE802.1Q VLAN, providing security between device groups.
●Jumbo Frame support
Improves the performance of large data packet transfers, supports frame size up to 9216 Bytes.
Connectivity and Resiliency
●SFP ports for fiber connectivity
Provides fiber uplinks on all models. SFP ports are in addition to RJ45 Ethernet ports, providing higher total number of available ports.
●Power over Ethernet(PoE/PoE+)
Provides up to 30Watt per port, which allows support of latest PoE+ capable devices such like high-performance access points and IP cameras, as well as any IEEE802.3af(PoE)-compliant powered devices.
For XS-S1920-9GT1SFP-P-E, Ports 1-8 provide PoE/PoE+. For other four 24-port models, Ports 1-24 provide PoE/PoE+.
●STP, RSTP and MSTP
Supports IEEE802.1D(STP), IEEE802.1w(RSTP) and IEEE802.1s(MSTP) standards, provides redundant links while preventing network loops.
●Rapid Link Detection Protocol(RLDP)
Detect the connectivity of links, and supports the enhanced loop detection function to prevent network faults caused by devices such as Hubs.
●Energy Efficient Ethernet(EEE)
Compliant with IEEE802.3az standard requirements in order to save energy.
Warranty and support
●3-Year Warranty Free of Charge
Go to https://www.ruijienetworks.com/support/servicepolicy to see details on warranty and support policies.
