XVR5408/16/32L

Categories: , ,

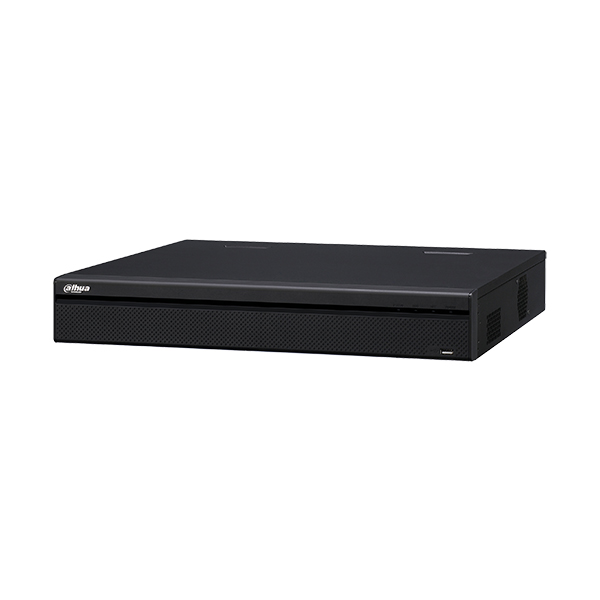

8/16/32 Channel Penta-brid 1080P Lite 1.5U Digital Video Recorder

Features:

  • Embedded processor
  • H.264+/H.264 dual-stream video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 12/24/32 channels IP camera inputs, each channel up
  • Max 48/96/128Mbps Incoming Bandwidth
  • Smart Search and Intelligent Video System

Add to Enquiry List
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Display
Interface 8CH：1 HDMI, 1 VGA, 1 TV
16/32CH: 2 HDMI, 1 VGA, 1 TV
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 8CH: 1/4/8/9/16
16CH: 1/4/8/9/16/25
32CH: 1/4/8/9/16/25/36
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input —
Relay Output —
Playback and Backup
Playback 8CH: 1/4/9
16/32CH: 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 4 SATA Port, up to 8TB capacity
eSATA 1 Port
Auxiliary Interface
USB 8CH: 3 USB Ports (3 USB 2.0)
16/32CH: 3 USB Ports (1 USB 2.0 , 2 USB 3.0)
RS232 1 port, for PC communication & Keyboard
RS485 1 Port, for PTZ Control
RS422 1 Port, for PTZ Control
Third Party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Audio and Video
HDCVI Camera Input 8/16/32 Channel
IP Camera Input 8+4/16+8/32 Channel, each channel up to 5MP
Audio In/Out 4/1, BNC
Two-way Talk Reuse audio in/out, RCA
Recording
Compression H.264+/H.264
Resolution 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate Main stream: 1080P(1~15fps)
1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Sub steram:D1/CIF/QCIF(1~15fps)
Bit Rate 1Kbps ~ 6144Kbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network
Interface 1 RJ-45 Port (1000M)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.42, CGI Conformant
Electrical
Power Supply AC100V-240V, 50/60Hz
Power Consumption <30W (Without HDD)
Environmental
Operating Conditions 10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Construction
Dimensions 1.5U, 440mm×417mm×76mm (17.3″x 16.4″ x 3.0″)
Net Weight 6kg (13.23lb) (without HDD)
Gross Weight 7kg (15.43lb)
Installation Desktop installation/Rack-mounted
Certifications
Certifications FCC: Part 15, Subpart B: 2015
CE: EN 55032:2015(Class B), EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014, EN 61000-3-2:2014, EN61000-3-3:2013
UL:EN60950-1:2006 + A1:2010 + A11:2009 + A12:2011 +A2:2013
