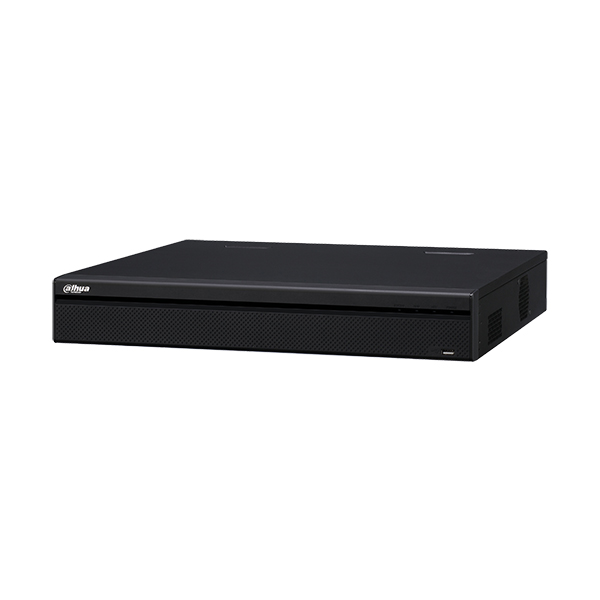

XVR5432L-X

Categories: , ,

32 Channel Penta-brid 1080P 1.5U Digital Video Recorder

Features:

  • H.265+/H.265 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 32 channels IP camera inputs, each channel up to 8MP; Max 128Mbps incoming bandwidth
  • First 16 channels support Tripwire & Intrusion; First 2 channels support Object Abandoned & Missing
  • Supports HDMI2 for spot output

Add to Enquiry List
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Video and Audio
Analog Camera Input 32 Channel, BNC
HDCVI Camera 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 32 Channel, each channel up to 8MP
Audio In/Out 4/1, BNC
Two-way Talk 1 Mic In, 1 Mic Out, BNC
Recording
Compression H.265+/H.265/H.264+/H.264
Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate Main stream:the 1st & 2nd channel 5M-N（1~10fps）, others 4M-N/1080P(1~15fps); 1080N/720P/960H/
D1/CIF (1~25/30fps)
Sub steram: D1/CIF(1~15fps)
Bit Rate 32Kbps ~ 6144Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
Display
Interface 2 HDMI ,1 VGA, 1 TV
Resolution HDMI 1:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720
HDMI 2 / VGA: 1920×1080, 1280×1024, 1280×7201920×1080, 1280×1024, 1280×720
Multi-screen Display 1/4/8/9/16/25/36
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface 1 RJ-45 Port (1000M)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input 16
Relay Output 6
Playback and Backup
Playback 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 4 SATA Port, up to 10TB capacity
eSATA 1
Auxiliary Interface
USB 1 USB 2.0, 2 USB 3.0
RS232 1 port, for PC communication & Keyboard
RS485 1 Port, for PTZ Control
RS422 1 Port, for PTZ Control
Electrical
Power Supply AC100V-240V, 50/60Hz
Power Consumption(without HDD) <35W
Construction
Dimensions 1.5U, 440mm×417mm×76mm (17.3″x 16.4″ x 3.0″)
Net Weight(without HDD) 5kg (11.0lb)
Gross Weight 7kg (15.43lb)
Installation Desktop installation/Rack-mounted
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third Party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
UL: UL 60950-1
