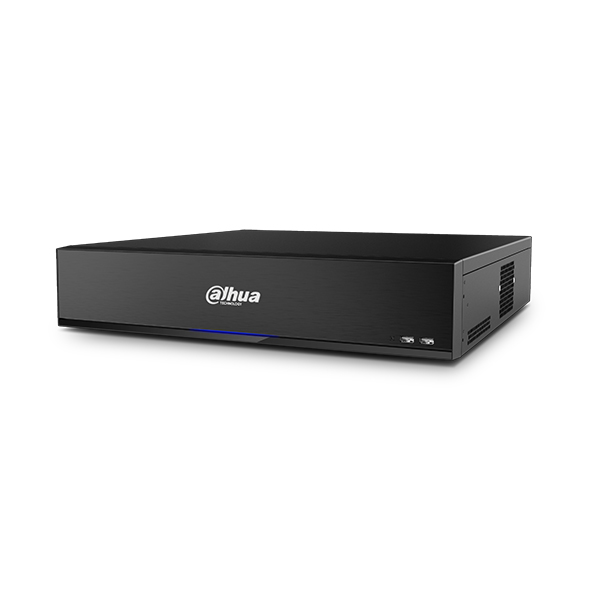

XVR7816S-4KL-X

Categories: , ,

16 Channel Penta-brid 4K 2U Digital Video RecorderSeriesPro

Features:

  • H.265+/H.265 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Supports 32 channels of IPC access, each channel up to 12MP input; Max 128Mbps incoming bandwidth
  • IoT & POS functionalities
  • All channels support Tripwire & Intrusion; First 4 channels support Object Abandoned & Missing
  • Supports HDMI2 for spot output

Add to Enquiry List
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Video and Audio
Analog Camera Input 16 Channel, BNC
HDCVI Camera 4K, 5MP, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 16+16 Channels, each channel up to 12MP
Audio In/Out 16 Audio In, 1 Audio Out, BNC
Two-way Talk 1 Mic In, 1 Mic Out, BNC
Recording
Compression H.265+/H.265/H.264+/H.264
Resolution 4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Record Rate Main stream: 4K(1~7fps); 6MP(1~10fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/CIF(1~25/30fps)
Sub steram:960H(1~15fps);
D1/CIF(1~25/30fps)
Bit Rate 32Kbps ~ 8192Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
Display
Interface 2 HDMI, 1 VGA, 1 TV
Resolution HDMI 1:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720
HDMI 2 /VGA: 1920×1080, 1280×1024, 1280×720
Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25/36
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface 2 RJ-45 Ports (1000M)
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
Alarm input 16
Relay Output 6
Playback and Backup
Playback 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 8 SATA Ports, up to 10TB capacity for each disk
eSATA 1 Port
Auxiliary Interface
USB 4 USB Ports (2 USB 2.0 , 2 USB 3.0)
RS232 1 port, for PC communication & Keyboard
RS485 1 Port, for PTZ Control
RS422 1 Port, for PTZ Control
Electrical
Power Supply AC100V-240V, 50/60Hz
Power Consumption 35W (Without HDD)
Construction
Dimensions 2U, 440mm×455mm×95mm (17.3″ x 17.9″ x 3.7″)
Net Weight
(Without HDD)		 6.9kg (15.2lb)
Gross Weight 9.8kg (21.6lb)
Installation Desktop installation/Rack-mounted
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
UL: UL 60950-1
Not available.
Type Download
Datasheet
Drawing-Dimension
Drawing-Rear Panel
